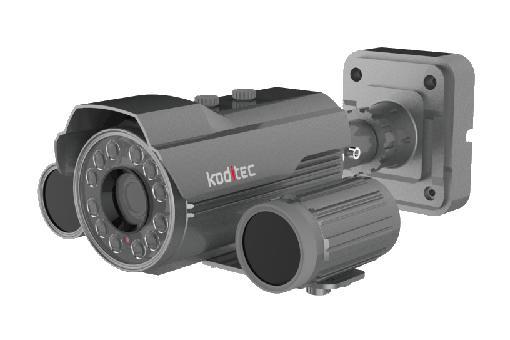

KIR-152 HVFi Kit
ㆍ Combination with KIL-050 Illuminator kits
ㆍ 2.1Mega-Pixel 1/3" Panasonic CMOS sensor
ㆍFull HD resolution 1920X1080p/30fps
ㆍ12units High Power IR LED + 5pie 132ea LEDs
ㆍf2.8-12mm Mega pixel Vari-focal lens
ㆍTrue Day&Night with ICR mechanism
ㆍExternal lens control / Built-in Joystick for OSD control
ㆍSuspended type Cable concealed bracket
# Option : 3.5~16mm, 5~50mm Vari-focal lens
Specification
|
Model |
KIR-152 HVFi |
|
Image Device |
1/2.9" Sony CMOS or 1/3" Panasonic CMOS |
|
Scanning System |
Progressive Scan |
|
Total Pixels |
2010(H) x 1108(V) |
|
Effective pixel |
1944(H) x 1092(V) |
|
Electronic Shutter |
60Hz: 1/30~1/30,000sec, 50Hz: 1/25~1/30,000sec |
|
Digital Resolution |
1920x1080p (1080p/25,30fps) |
|
Video Output |
HD-SDI / CVBS (NTSC, PAL) |
|
SDI FORMAT |
1080P/720P |
|
Resolution &Frame rate |
1080@30p/25p, 720@60p/50p |
|
Min. Illumination |
0 Lux (IR LED On) / 0.1 Lux@F1.2 / 30IRE |
|
Lens |
f2.8-12mm Mega pixel vari-focal lens |
|
Day&Night |
True Day&Night with ICR filter mechanism |
|
LED |
12units Power LED / 850nm |
|
On Screen Display |
Built in joystick controller |
|
Language |
ENG/JPN/CHN1/CHN2 |
|
Brightness |
0~100 |
|
AGC |
0~16 |
|
Shutter Mode |
AUTO/MANUAL |
|
Shutter Speed |
1/30(25), 60(50), FLK, 250, 500, 1K, 2K, 5K, 10K, 50K |
|
Sens-Up |
OFF/x2/x3/x4/x6/x8/x10/x15/x20/x30/x60 |
|
White Balance |
ATW/AWC/INDOOR/OUTDOOR/MANUAL |
|
D-WDR |
High/Middle/Low/Off |
|
Back Light |
HSBLC/BLC/OFF |
|
3D DNR |
ON/OFF |
|
Smart IR |
ON/OFF, LEVEL : 0~100 |
|
D-EFFECT |
ON(Freeze/Mirror/D-Zoom/NEG. Image)/OFF |
|
Motion |
ON(Select/Display/Sensitivity/Motion view/Default)/OFF |
|
Privacy |
ON(Select/Display/Color/Default)/OFF |
|
Operation Temperature |
-10°C~+50°C |
|
Power Consumption |
DC12V ±10%, Max. 2.5A |
|
Dimension |
227.5(W) x 120(H) x 227.7(D)mm |
|
Weight |
Approx.1.86Kg |
Dimension
