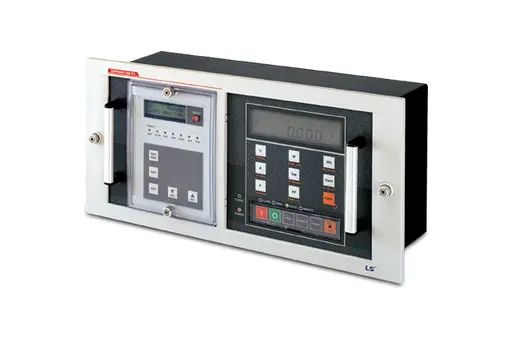

GIPAM115
Economic multifunction digital power protection monitoring device with various protection and measurement elements.
Features
Protection Function
ㆍVarious protection factor (9 protection factors)
ㆍEvent and fault recording (Max 160 recordings)
ㆍVarious measurements and monitoring functions (1 measurement)
Convenience Function
ㆍSelf diagnosis function
ㆍEasy maintenance of equipment
Communication Function
ㆍVarious communication compatibilities
Protection factor
Functions | Operation element | Setting range | Operating time characteristics | Remarks | |
---|---|---|---|---|---|
Setting range | Characteristics | ||||
OCR [50/51] | Instantaneous | OFF, 2~24In / 1In | 0.04~60.0s / 0.01s | Definite time | |
Time-delay | OFF, 0.2~10.0In / 0.1In | 0.05~1.20 / 0.01 | Definite time 3 types Inverse time 4 types |
D2, D4, D8 ,SI, VI, EI, LI | |
OCGR [50/51N] | Instantaneous | OFF, 0.5~8.0In / 0.5In | 0.04~60.0s / 0.01s | Definite time | Block time : 0.1~60.0s/0.1s |
Time-delay | OFF, 0.1~0.5In / 0.02In | 0.05~1.20 / 0.01 | Definite time 3 types Inverse time 4 types |
||
OVR [59] | Time-delay(high) | OFF, 0.80~1.60Vn / 0.02Vn | 0.1~60.0s / 0.01s | Definite time | |
Time-delay(Low) | OFF, 0.80~1.60Vn / 0.02Vn | 0.1~60.0s / 0.01s | Definite time | ||
UVR [27] | Time-delay(high) | OFF, 0.20~0.90Vn / 0.02Vn | 0.1~60.0s / 0.01s | Definite time | Outage lock : (below 15V) |
Time-delay(Low) | OFF, 0.20~0.90Vn / 0.02Vn | 0.1~60.0s / 0.01s | Definite time | ||
OVGR [64G] | Time-delay(high) | OFF, 0.10~0.40Von / 0.02Von (Von=190V) | 0.1~60.0s / 0.01s | Definite time | |
Time-delay(Low) | OFF, 0.10~0.40Von / 0.02Von (Von=190V) | 0.1~60.0s / 0.01s | Definite time | ||
SGR [67G] | Zero-phase current(Io) | OFF, 0.6~3.6Ion / 0.2Ion (Ion=1.5mA) |
0.1~60.0s / 0.01s | Definite time | |
Zero-phase voltage(Vo) | 0~0.40Von / 0.02Von (Von=190V) |
||||
RCA | 45。 fixed | ||||
POR [47] | Time-delay(high) | OFF, 5~100% / 1% | 0.1~60.0s / 0.01s | Definite time | |
Time-delay(Low) | OFF, 5~100% / 1% | 0.1~60.0s / 0.01s | Definite time |
Specification
Type | Specification | ||
---|---|---|---|
Wiring | 1P2W, 1P3W, 3P3W, 3P4W | ||
Input | Frequency | 60Hz/50Hz | |
Voltage | PT | 110V/100V | |
GPT | 190V | ||
Current | CT | 5A | |
ZCT | 200/1.5mA | ||
Control Voltage | DC 110/125V, AC 110V 50/60Hz (or AC/DC 88V~132V) | ||
Power Consumption | Steady: 15W Max. Operating: 70W Max. | ||
Burden | PT | Max. 0.5VA | |
CT | Max. 1.0VA | ||
Input Contact 3EA | Digital Input : AC/DC 110V | ||
Output Contact | 2EA for Power | AC 250V 16A / DC 30V 16A, Resistive Load 4000VA, 480W | |
8EA for Alarm (7a 1c) | AC 250V 5A / DC 30V 5A, Resistive Load 1250VA, 150W | ||
Insulation Resistance | Over DC 500V 100㏁ | ||
Insulation Voltage | AC 2kV (1kV) / for 1 min | ||
Impulse Voltage | AC 5kV (3kV) Over 1.2 × 50㎲ | ||
Overload Withstand | Current circuit | 2 In for 3 hours 20 In for 2 seconds |
|
Voltage circuit | 1.15 Vn for 3 hours | ||
Fast Transient Disturbance | Power Input 4kV Other Input 2kV (Analog input 1kV) |
||
ESD (Electrostatic Discharge) | Air 8kV Contact 6kV |
||
Operation temperature | -10℃ ~ 55℃ | ||
Storage Temperature | -25℃ ~ 70℃ | ||
Humidity | Within 80% RH, no condensation | ||
Altitude | 1000m and below | ||
Others | Non-impact place Non-air pollution place |
||
Standard | IEC 60255, IEC 61000-4, KEMC 1120 | ||
Dimension (W×H×D) | 437×210×165 mm | ||
Weight | 10.5kg |
