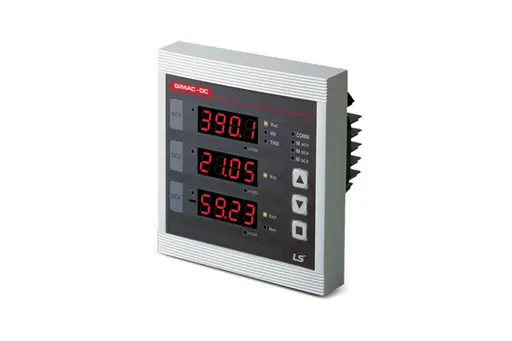

GIMAC-DC
Digital DC Meter Used for DC Electricity Measurement.
Features
Measurement Function
ㆍHigh precision measurement of various measurement elements (11 elements)
ㆍWide range of PT voltage inputs
ㆍDC voltage and DC current measurement
Convenience Function
ㆍCompact appearance and panel cutting size
ㆍSupport for wide voltage environment (AC/DC 88~264V)
Communication Function
ㆍCommunication redundancy
Measurement
Type | Measurement | Accuracy(%) | |
---|---|---|---|
AC voltage | AC voltage | Vac | ±0.30% |
frequency | Hz | ±0.05Hz | |
THD | THD | - | |
DC voltage | DC voltage | Vdc | ±0.30% |
DC current | Output current | Iout | ±0.50% |
Battery current | Battery current | Battery current | |
MAX | AC voltage | MAX Vac | - |
THD | MAX THD | - | |
DC voltage | MAX Vdc | - | |
Output current | MAX Iout | - | |
Battery current | MAX Ibat | - |
Specification
Rating | Specification | |
---|---|---|
Input | Frequency | 50Hz / 60Hz |
Voltage PT | AC 20~452V, DC 20~264V | |
Control voltage | AC/DC 88~264V (Free voltage) | |
Power consumption | Max. 10W | |
Burden PT | Max. 0.5VA | |
Insulation Resistance | Over DC 500V 100㏁ | |
Insulation Voltage | AC 2kV (1kV) / 1min | |
Impulse Voltage | AC 5kV (3kV) / 1.2×50㎲ | |
Overload withstand | Current circuit | 1.2 In for 3 hours 8 In for 2 seconds |
Voltage circuit | 1.15 Vn for 3 hours | |
Fast Transient/Burst Immunity | Power Input 4kV DC Input 2kV |
|
ESD(Electrostatic Discharge) | Air 8kV Contact 6kV |
|
Operation temperature | -10℃ ~ 55℃ | |
Storage temperature | -25℃ ~ 70℃ | |
Humidity | Within 80% RH, no condensation | |
Altitude | 2000m and below | |
Others | Non-impact place Non-air pollution place |
|
Standard | IEC60255, IEC61000-4 | |
Communication | MODBUS/RS485 | |
Dimension(W×H×D) | 144×144×85 (mm) |
