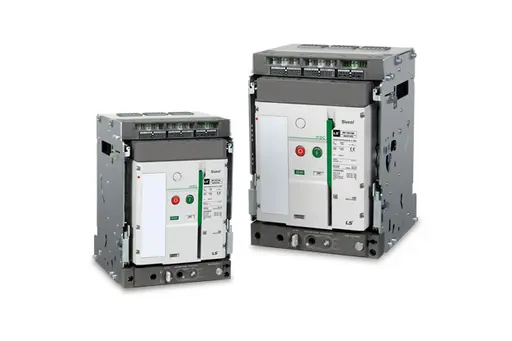

UL Compact Susol DC Switch-Disconnector
UL Type Compact DC Switch-Disconnector series makes another evolution in size and performance for low voltage circuit breakers by providing a reduction of size and weight of the DC switchgears. Thanks to the reduced size by 55%, It is easy to handle the breaker as well as reducing the space and raw materials in the switchgear fabrication.
Product Overview
Up to DC 1500V 1200A, Compact Susol DC Switch-Disconnector is suitable for DC grid as it also meets the demands of the increasing power generation in PV and ESS.
Customer Benefits
ㆍOptimized for PV and ESS systems (UL 489B&F)
ㆍLarge short-time capacity : 50kA/1s
ㆍPhysical size for installation and accessories are compatible with existing Susol ACB
Specification
ㆍRated Voltage and Current : Up to 1500Vdc, 1200A
ㆍRated short-time current(Icw) : 50kA/1s
ㆍStandard : UL 489B & UL 489F
