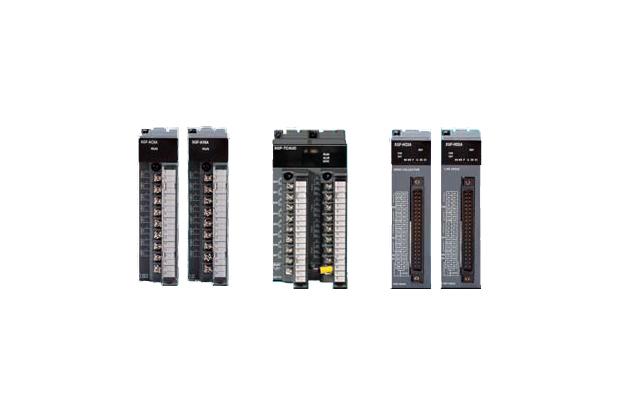

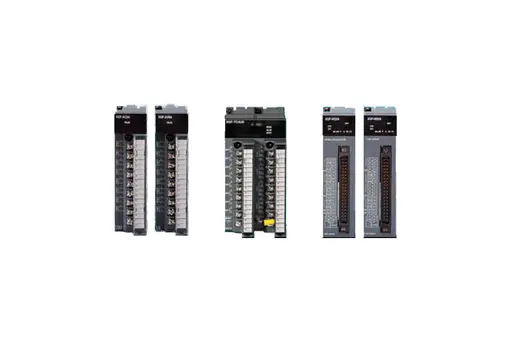

XGT Special Module
For sensor switch, control of temperature, weight, flow, motor, actuator, and even highly precise positioning control, XGT series offer diverse special modules such as analog, HSC, and positioning to satisfy complicated industrial needs.
Features
Fast processing of parameter and data of special modules
ㆍContinually refreshes operation data of special module by CPU module
ㆍIncludes contact points such as conversion data of AD/DA module and command of HSC & positioning modules
Easy- to-use (Easy operation parameter setting and data monitoring)
ㆍConvenient parameter setting available through XG5000
ㆍProvides useful functions that can monitor and test operation data and contact points through XG5000
Simple maintenance (Changing online module)
ㆍWithout turning off and holding CPU, users can change special modules with ease.
Analog input/output module
Features
ㆍFast conversion processing
ㆍHigh resolution
ㆍSetting and monitoring special module parameters through XG5000
ㆍSupports 4 types of digital output data formats
 |
Analog input module
|
 |
Analog output module
|
||||||||||||||||||||||
|
Analog input/output module
|
Temperature module
Features
ㆍInsulation between channels
ㆍSupports various input sensors (supporting C-type sensor)
ㆍVarious additional functions (average, filter, alarm, max/min value display)
ㆍSpecial module parameter setting and monitoring with XG5000
 |
Temperature input module
|
 |
Temperature controller
|
High speed counter module
Features
ㆍParameter setting and monitoring using XG5000
ㆍIncremental encoder available
ㆍSupporting various pulse input (5V, 12V, 24V)
ㆍVarious multiplication (1/2 phase pulse input)
ㆍExternal present input
ㆍProvides functions to prevent counting external signals
ㆍSupports HTL-level incremental encoder in the line-drive input type
 |
High-speed counter module
|
|
HART interface analogue/digital conversion module (XGF-AC4H, XGF-DC4H)
|
Features ㆍIt supports HART protocol in the input range of 4~20mA, bi-directional digital communication is available using analog signal wiring. If analog wiring is currently used, there is no need to add wiring for HART communication (HART communication is not supported in the range of 0~20mA) ㆍHigh accuracy ㆍOperation parameters setting/monitoring ㆍInput disconnection detection function |
 |
Event input module (XGF-SOEA)
|
Features ㆍSOE: Sequence Of Events Recorder ㆍI/O information collection to analyze the control system in Generation and Transformer ㆍEvent collection in every 1ms ㆍMax. 300ea data available ㆍData retain by built-in memory ㆍMax. installable module: 16ea ㆍEvent monitoring of history through SOE Viewer |
 |
Datalog module (XGF-DL16A)
|
Features ㆍSaves PLC device data without PC ㆍSaves PLC control data without missing any change - Data can be saved whenever scanning is done or they can be saved at an interval of several ms(milliseconds). ㆍSaves a large volume of data files - Long-term data saving is available since CF card and USB memory with a large volume of up to 16GB can be used. |
 |
