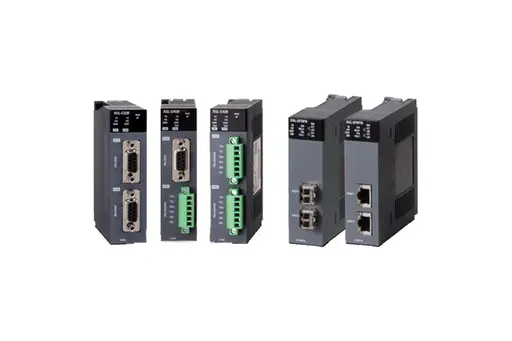

Features
ㆍProvide various Ethernet, serial network solutions
ㆍLarge capacity data & high-speed network system
ㆍEasy protocol editing and network parameter setting: XG5000
ㆍHigh reliability: Ring system(RAPIEnet)
ㆍVarious diagnostic functions and network status information
|
Features ㆍSupports max media speed of 1Gbps ㆍSupports 1Ch 2Ports ㆍServer standard maximum communication load 5,000pps ㆍFiber optic module (XGL-EFMTB) has replaceable connector, communication speed is improved to 1Gbps, and maintenance is easy ㆍXG5000 old and new versions available ㆍUser defined frame UI enhancements make it easier to use ㆍVarious diagnostics made possible by strengthening log function ㆍOpen ethernet and dedicated protocol (RAPIEnet) |
 |
Specifications
- Open Ethernet
| Item | Product Name | |||
|---|---|---|---|---|
| XGL-EFMTB | XGL-EFMFB | |||
| Transmission Specification | Baud rate | 10/100/1000Mbps | 100/1000Mbps | |
| Transmission Type | Base Band | |||
| Max. extended length between nodes | 100m(Node-Hub) | 2km | ||
| Max. segment length | - | - | ||
| Max. number of nodes | Hub connection(Up to 9 recommended) | 30/Segments | ||
| Distance between nodes | - | Integral times of 0.5m | ||
| Max. protocol size | 1,500 Byte | |||
| Access method to service zone | CSMA/CD | |||
| Frame error check | CRC 16 = X15+X14+X13+....+X2+X+1 | |||
| Basic Specification | Current consumption (5V) | 100Mbps | 560mA | 750mA★ |
| 1Gbps | 900mA | 740mA★ | ||
| Weight | 146 g | 156 g | - | |
★Formerica SFP standard
|
Features ㆍSmart server recognizes the protocol (XGT dedicated communication or Modbus RTU/ASCII) automatically and activates ㆍRepeater mode may be used use as an insulated repeater or convert RS-232C to RS422/485 ㆍContains a built- in termination resistor and can be set in the basic parameter window ㆍEasy protocol editing and communication parameter setting: XG5000 ㆍLong-distance communication via modem connection ㆍDedicated protocol for multi-drop configuration connectable up to 32 units ㆍFlexible communication speed setting (300~115,200bps) ㆍSupports full duplex and half duplex communication ㆍMax. 12 modules available in one CPU ㆍVarious connection to MMI S/W (XGT, Modbus RTU, Modbus ASCII) ㆍVarious diagnosis functions using XG5000 (I/O, link status, service status) ㆍSupports simultaneously dedicated service in remote connection |
 |
Specifications
| Item | Specification | |||
|---|---|---|---|---|
| XGL-C22B | XGL-CH2B | XGL-C42B | ||
| Serial communicat-ion channel | RS-232C | 2 channels | 1 channel | - |
| Conforms to RS-232C standard | ||||
| Line config | 1:1 | |||
| RS-422/485 | - | 1 channel | 2 channels | |
| Conforms to RS-422/485 standards | ||||
| Line config | 1:1, 1:n, n:1 | |||
| Modem connection function | Remote communication with external devices is available via public telephone line by connecting external modem to the module. | - | ||
| Operating mode (specified per port) |
P2P | XGT client, Modbus ASCII/RTU client, Use defined communication | ||
| SERVER | XGT server, Modbus ASCII/RTU server | |||
| Data type | Start Bit | 1 | ||
| Data Bit | 7 or 8 | |||
| Stop Bit | 1 or 2 | |||
| Parity | Even/Odd/None | |||
| Synchronization type | Asynchronous type | |||
| Detecting error | BYTE SUM, WORD SUM, BYTE XOR, DLE AB, DLE SIEMENS, LSIS CRC, CRC 16, BYTE SUM 2’ COMP, BYTE SUM 1’s COMP 7BIT SUM, 7BIT XOR, CRC 16 IBM, CRC 16 CCITT | |||
| Transmission speed (bps) | 300 / 600 / 1,200 / 1,800 / 2,400 / 3,600 / 4,800 / 7,200 / 9,600/19,200 / 38,400 / 57,600 / 64,000 / 76,800 / 115,200bps | |||
| Station No. setting | Setting range : 0-31, Max. station No. : 32 stations | |||
| Transmission Distance(m) | RS-232C: Max.15 (extendible if modem used) | - | ||
| - | RS-422/485: Max. 1,200m | |||
| Diagnosis function | Status LED diagnosis XG5000 diagnosis service(Frame monitor, Status by service, Loop-Back diagnosis) History, Saving history | |||
| Appearance size(mm) | 98(H) X 27(W) X 90(D) | |||
| Current consumption(mA) | 420 | 480 | 520 | |
| Weight(g) | 121 | 119 | 116 | |
|
Features ㆍDeviceNet protocol ㆍDirect control of various I/O devices via Dnet system ㆍMax. 63 slave modules controlled by one master module ㆍFlexibility in network configuration: Multi-drop and T branch connection ㆍConnectable to other master module and various slave modules ㆍProvides an ‘ Auto Network Scan’ function and various information with configuration tools (N Configurator) ㆍCommunicates a high-speed link parameter ㆍConnectable to various slave I/O including other module (Common I/O, Actuator, Switch, Optical switch, Valve, ㆍInverter, A/D module, Position controller etc..) ㆍAutomatic monitoring of slave modules in the network: Auto-scan (XG5000) ㆍEasy expansion: Up to 12 master modules ㆍNetwork setting by N Configurator/XG5000 (Parameter setting, diagnosis and monitoring) |
 |
Specifications
|
Features ㆍProfibus-DP protocol ㆍCommunicates amongst a master automation device and distributed slave I/O device ㆍFast slave communication without an application layer ㆍTransmission speed: 9.6Kbps ~ 12Mbps ㆍTransmission distance: Max. 1,200m ㆍMax. 126 slave stations available (32 stations per segment) ㆍNetwork setting using N Configurator/XG5000 (Parameter setting, diagnosis and monitoring) ㆍI/O data of master station: 7 kbytes ㆍAutomatic monitoring of slave modules in the network: Auto-scan (XG5000) ㆍMulti master |
|
Specification
