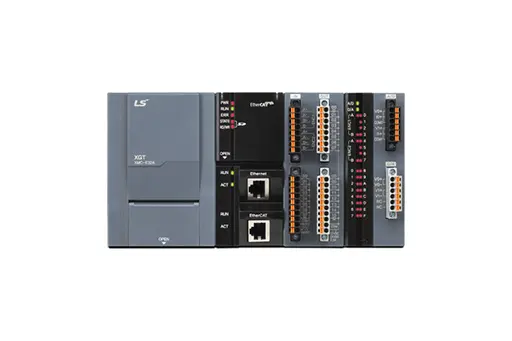

XMC Motion Controller
The XMC-E32A/E32C delivers high performance EtherCAT-based motion control functions along with a variety of embedded functions and high-tech capabilities specialized for numerical control and robots. In addition to LS ELECTRIC PLC, HMI, and servo products, the XMC-E32A/E32C will help create an even better and optimal solution.
Features
ㆍHigh-speed program processing: 6.25ns (Basic command)
ㆍEtherCAT-based high speed cycle times: 0.5/1/2/4ms (Same as main task cycle time)
ㆍVarious built-in functions
- 8 digital inputs/16 digital outputs, Encoder inputs (2 ch.), Ethernet, Analog Input (2 ch.)/Output (2 ch.)_E32A, RS-232C/RS-485_E32C
ㆍRobot control: Delta3, Delta3R, Linear Delta, etc.
ㆍXG5000 software for programming and monitoring
Specifcations
Item | Specification | ||
---|---|---|---|
Operation method | Main task/Periodic task: Fixed cyclic operation, repetitive operation. Initial task: Only once at the time of entering the RUN | ||
Control period | Main task cyclic time: 0.5ms, 1ms, 2ms, 4ms Periodic task cyclic time: Multiple setting of main task | ||
I/O Control method | Synchronized update with main task cycle (Refresh method) | ||
Program language | Ladder Diagram (Function block), Structured Text, G-Code | ||
Number of instruction | Operator | 18 | |
Basic function | 202 | ||
Basic function block | 174 | ||
Special function block | 97 | ||
Processing speed | Basic | 6.25ns or more (General point/coil) | |
Move | 5ns or more (Word type) | ||
Arithmetic | 30ns or more (Word type) | ||
Program | number | Max. 256 | |
Capacity | 10MB (Motion program), 10MB (NC program) | ||
Data area | Symbolic variable (A) | 4.096KB (Retain setting available up to 2,048KB) | |
Input variable (I) | 16KB | ||
Output variable (Q) | 16KB | ||
Direct variable (M) | 2,048KB (Retain setting available up to 1,024KB) | ||
Flag variable | F | 128KB | |
K | 18KB | ||
U | 1KB | ||
L | 22KB Note1) | ||
N | 49KB Note1) | ||
Timer | No limit in number of I/O points, Time range: 0.001˜4,294,967,295sec (1,193hour) | ||
Counter | No limit in number of I/O points, Counter range: 64 bit range | ||
Program | Initial program, Main task program, Periodic task program, NC program | ||
Operation mode | RUN, STOP | ||
Restart mode | Cold, Warm | ||
Self-diagnosis function | Task cycle error, Task time occupancy rate exceed, memory abnormal, power abnormal, etc. | ||
Back-up method | Retain area setting in basic parameter or retain variable setting. | ||
Number of control axis Note2) | XMC-E32A,E32C | 32 axes (Real/Virtual axis), 4axes (Virtual axis), 64 slaves (Max 32 slaves in case of 32 axes (Servo, INV) control) | |
XMC-E16A | 16 axes (Real/Virtual axis), 2axes (Virtual axis), 32 slaves (Max 16 slaves in case of 16 axes(Servo, INV) control) | ||
XMC-E08A | 8 axes (Real/Virtual axis), 1axis (Virtual axis), 16 slaves (Max 8 slaves in case of 8 axes(Servo, INV) control) | ||
CAM operation | XMC-E32A,E32C | 32 profiles/32,768 points | |
XMC-E16A | 16 profiles/16,384 points | ||
XMC-E08A | 8 profiles/8,192 points | ||
Communication | EtherCAT (CoE: CANopen over EtherCAT, FoE: File Access over EtherCAT) | ||
Communication/Control period | 0.5ms, 1ms, 2ms, 4ms (Same with main task period) | ||
Servo drive | EtherCAT servo drive which supports CoE | ||
Control unit | Pulse, mm, inch, degree | ||
Control method | Position, Velocity, Torque (Servo drive support), Synchronous, Interpolation | ||
Range of position / Velocity | ±LREAL, 0 | ||
Torque unit | Rated torque % designation | ||
Acc./Dec. profile | Trapezoidal, S-curve(Regarding Jerk value set by function block) | ||
Rage of Acc/Dec | ±LREAL, 0 | ||
Manual operation | JOG operation | ||
Absolute system | Available (When using absolute encoder type servo drive) | ||
Encoder input | Channel | 2 channels | |
Max.input | 500kpps | ||
Input method | Line drive input (RS-422A IEC specification), Available open collector output type encoder | ||
Input type | CW/CCW, Pulse/Dir, Phase A/B |
