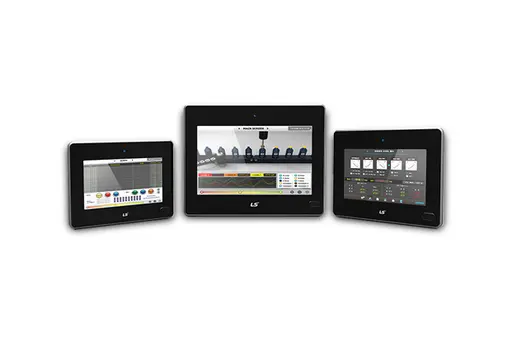

Features
Higher Level of Performance
- Superior performance with improved CPU compared to existing products
- About 30% better performance
Wider Variety of communication interfaces
Communicable simultaneously with PLC, barcode reader, VFD, and temperature controller
Slimmer and lighter in Weight
Being 20% lighter than the previous product, it provides more space and lightens the user panel
USB Port in the Front for Devices
With the USB port in the front, there is no need to open the control panel to apply changes to the XP-Runtime or download/upload drawing files made in XP-Builder
3-Channel Serial Communication
- Simultaneously communicable by RS-485, RS-232C, RS-422/485
- D-Sub 9-pin terminal includes COM1 and COM2
RTC Function
ㆍRTC (Real Time Clock) function operates with a battery even when the power is off
ㆍHMI time setting is quickly adjustable using XP-Builder
Specification
General Information
| Item | Description | Standard | |||
|---|---|---|---|---|---|
| Ambient temperature |
0℃∼+50℃ | ||||
| Storage temperature |
-20℃∼+60℃ | ||||
| Ambient humidity |
10∼85%RH, without dew condensation |
||||
| Storage humidity |
10∼85%RH, without dew condensation |
||||
| Vibration resistance |
Occasional Vibration | Counts | |||
| Frequency | Acceleration | Amplitude | 10 times each direction (X, Y and Z) |
IEC 61131-2 | |
| 5≤ f < 9㎐ | - | 3.5mm | |||
| 9≤ f ≤ 150㎐ | 9.8m/s2 | - | |||
| Continuous Vibration | |||||
| Frequency | Acceleration | Amplitude | |||
| 5≤ f < 9㎐ | - | 1.75mm | |||
| 9≤ f ≤ 150㎐ | 4.9m/s2 | - | |||
| Shock resistance |
Maximum shock acceleration: 147㎨(15g) Authorization time: 11㎳ Pulse waveform: Half-sine wave pulse (3 times each of X,Y and Z) |
IEC 61131-2 | |||
| Noise resistance |
Square wave impulse noise | DC: ±1,200V | LS ELECTRIC Standards | ||
| Electrostatic discharge | ±4kV (Contact discharge) | IEC 61131-2, IEC 61000-4-2 |
|||
| Radiated electromagnetic field noise | 80 ~ 100MHz, 10V/m | IEC 61131-2, IEC 61000-4-3 |
|||
| Fast transient/Burst noise | Power module: 2.4 kV, Communication interface: 1.2kV |
IEC 61131-2, IEC 61000-4-4 |
|||
| Operating ambience |
Free from corrosive gas and excessive dust | ||||
| Altitude | 2,000m (6,562ft) or below | ||||
| Pollution degree |
2 or under | ||||
| Cooling method |
Natural air-cooling | ||||
Dimension
