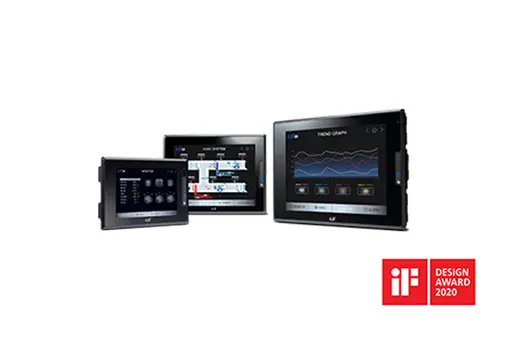

iXP2 Series
High functioning, user-friendly, and robust choice for your system, iXP2
Features
High functioning, user-friendly, and robust choice for your system, iXP2
Responsive touch screen
Use touch screen either with bare hands or with gloves.
Dual-Core CPU offers high-speed communication and processing
Better performance than ever with enhanced serial communication, CPU processing, memory access, and vector/raster graphic processing
Multiple interface methods to cope with the Internet of Things
Ethernet 2ch., HDMI/Audio output, USB host/device, multimedia (video)
Multi-touch and gesture-control screens
Multi-touch maximizes operating stability and safety. Use gesture-control to view logging trend graphs and to change screens.
Robust IP66 aluminum frame
Reinforced protection against water and dust. Conforms to NEMA 4X standard.
One-to-one interchangeability with existing iXP series
Offers equivalent panel cut to iXP
Screen gesture
Flick to change screens. No extra switching button is needed to change screens.
Object gesture
Select and then swipe and flick the object you want.
Object List
ㆍLogging trend graph
ㆍView logging history
ㆍView history alarms
Multi-touch
Use multi-touch to protect your system from undesired errors.
Dual monitor mode and extension mode
Increase convenience by duplication or extending screens.
Specification
General Information
Dimension
iXP2 Series
High functioning, user-friendly, and robust choice for your system, iXP2
Features
High functioning, user-friendly, and robust choice for your system, iXP2
Responsive touch screen
Use touch screen either with bare hands or with gloves.
Dual-Core CPU offers high-speed communication and processing
Better performance than ever with enhanced serial communication, CPU processing, memory access, and vector/raster graphic processing
Multiple interface methods to cope with the Internet of Things
Ethernet 2ch., HDMI/Audio output, USB host/device, multimedia (video)
Multi-touch and gesture-control screens
Multi-touch maximizes operating stability and safety. Use gesture-control to view logging trend graphs and to change screens.
Robust IP66 aluminum frame
Reinforced protection against water and dust. Conforms to NEMA 4X standard.
One-to-one interchangeability with existing iXP series
Offers equivalent panel cut to iXP
Screen gesture
Flick to change screens. No extra switching button is needed to change screens.
Object gesture
Select and then swipe and flick the object you want.
Object List
ㆍLogging trend graph
ㆍView logging history
ㆍView history alarms
Multi-touch
Use multi-touch to protect your system from undesired errors.
Dual monitor mode and extension mode
Increase convenience by duplication or extending screens.
Specification
General Information
| Item | iXP2-0800A/D | iXP2-1000A/D | iXP2-1200A/D | iXP2-1500A/D | |
|---|---|---|---|---|---|
| Display type | TFT color LCD | ||||
| Screen size | 8.4" | 10.4" | 12.1" | 15" | |
| Display resolution | 800 x 600 pixel | 1024 x 768 pixel | |||
| Color indication | 24-bit color (16.7M colors) | ||||
| Indication degree | Right and left: 80 deg. Top: 80 deg. Bottom: 60 deg. |
Right: 75 deg. Top: 75 deg. Bottom: 75 deg. |
Right and left: 80 deg. Top: 80 deg. Bottom: 80 deg. |
||
| Backlight | LED method, automatic On / Off support | ||||
| Backlight lifetime | 50,000 hours | ||||
| Touch panel | Capacitive touch | ||||
| Audio output | Magnetic Buzzer (85dB) | ||||
| Process | 1GHz, Dual-Core CPU | ||||
| Memory | Flash | 1GByte | |||
| Operating RAM | 1GByte | ||||
| Backup RAM | 1MByte | ||||
| Backup data | Date / Time data, Logging / Alarm / Recipe data, Non-volatile devices | ||||
| Battery | CR2032(3.0V/210mAh, About 3years/25℃) | ||||
| Video Out | 1 x HDMI | ||||
| Ethernet | 1 x 10Base-T / 100Base-TX, 1 x 10Base-T / 100Base-TX / 1000Base-T | ||||
| USB host | 3 x USB 2.0 (Front x 1, Rear x 2) | ||||
| USB device | 1 x USB 2.0 (Send / Receive front, PC and project data etc.) | ||||
| RS-232C | 1 x RS-232C (DSUB 9 / Male type) | ||||
| RS-422/485 | 1 x RS-422/485 (Terminal Block) | ||||
| Multi-language | Can display 12 languages simultaneously | ||||
| Animation | GIF format support | ||||
| Recipe | Support | ||||
| Data logging | Support | ||||
| Script Launcher | Support | ||||
| Standard Certification | CE, KC, UL, IECEx, ATEX, KCs | ||||
| Protection standard | IP66, Conform to the UL type 4x, NEMA 4x standard | ||||
| Explosion proof | Ex nA IIC T5 Gc, Ex tc IIIC T100℃ Dc IP64 | ||||
| Dimension (mm) | 240 × 180 × 60 | 271 x 212 x 60 | 313 × 239 × 60 | 395 × 294 × 66 | |
| Panel cut (mm) | 228.5 x 158.5 | 259.0 x 201.0 | 301.5 x 227.5 | 383.5 x 282.5 | |
| Power | iXP2-xxxxA : AC100 / 240V, iXP2-xxxxD : DC24V | ||||
| Power consumption (W) | 25 | 25 | 30 | 30 | |
| Weight(Kg) | 1.87 | 2.35 | 3.0 | 4.6 | |
| Specific conditions of use | 1. The equipment presents a potential electrostatic hazard. Clean only with a damp cloth. 2. The device shall be installed in an enclosure that maintains an ingress protection rating of at least IP54 and meets the enclosure requirements of IEC 60079-0 and IEC 60079-15. 3. Must be installed in accordance with EN 60079-14. 4. Do not connect or separate plugs and sockets while an explosive atmosphere is present. 5. Keep out of direct sunlight |
||||
| * DC types scheduled for release in '18.03 | |||||
Dimension
