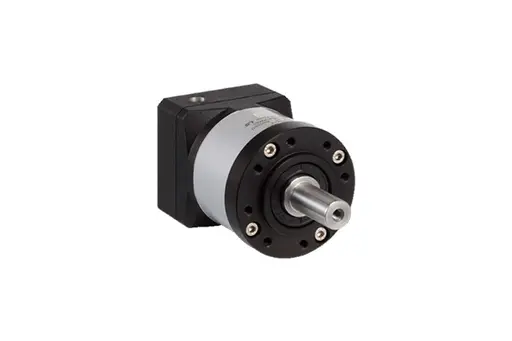

SSO Series
Circle output flange
Straight type gearbox: Standard/Premium
Features (Product Availability)
Stage | Gear ratio | 040 | 060 | 080 | 120 | 160 |
---|---|---|---|---|---|---|
1A | 3~10 | ◯ | ◯ | ◯ | ◯ | ◯ |
2B | 15~100 | ☏ | ◯ | ◯ | ◯ | ◯ |
2A | 15~100 | ◯ | ◯ | ◯ | ◯ | ◯ |
1M/2M | 3~100 | ☏ | ☏ | ☏ | ☏ | ☏ |
○ : Standard, △: Custom made, ☏ : Contact sales person.
Specification
Please contact LS ELECTRIC sales person for ★ gear ratio
(1) Considering safety factors, nominal output torque is calculated
(2) Max. output torque is equivalent to 60% of the emergency stop torque
