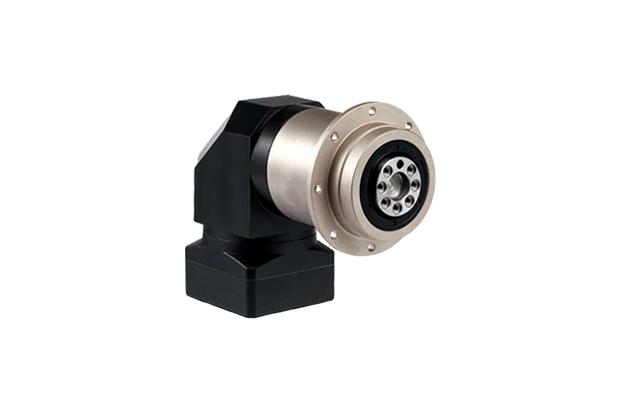

HAD Series
Flat output flange
Right-angle type gearbox: Standard/Premium/Advanced
Features (Product Availability)
HAD | |||||||
---|---|---|---|---|---|---|---|
Stage | Gear ratio | 47 | 64 | 90 | 110 | 140 | 200 |
1A | 3~10 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ |
14,20 | ☏ | ◯ | ◯ | ◯ | ◯ | ◯ | |
2B | 15,20 | ☏ | ☏ | ☏ | ☏ | ☏ | ☏ |
25~100 | ☏ | ◯ | ◯ | ◯ | ◯ | ◯ | |
120~200 | ☏ | ☏ | ◯ | ◯ | ◯ | ◯ | |
2A | 15,20 | ◯ | ☏ | ☏ | ☏ | ☏ | ☏ |
25~100 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |
120~200 | ☏ | ◯ | ◯ | ◯ | ◯ | ◯ | |
1M/2M | 3~200 | ☏ | ☏ | ☏ | ☏ | ☏ | ☏ |
○ : Standard, △: Custom made, ☏ : Contact sales person.
Specification
Please contact LS ELECTRIC sales person for ★ gear ratio.
(1) Considering safety factors, nominal output torque is calculated
(2) Max. output torque is equivalent to 60% of the emergency stop torque
