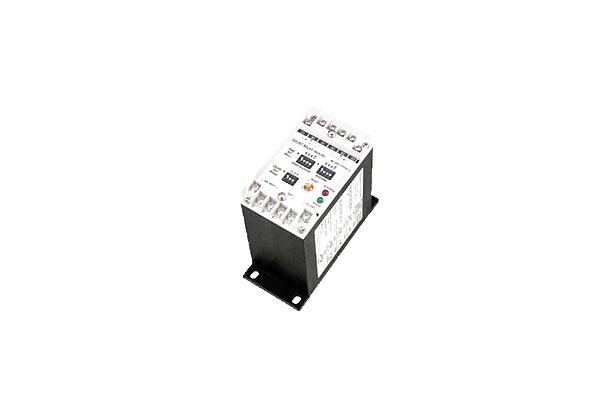

product Image
Count Relay
모델명
SBCR-103
시리즈
전력 제어 부문
자료
Catalog-Luxco-Count Relay
구매정보
provider logo
럭스코

선박 및 산업플랜트 설비용 전기전자 기자재 산업, 태양광 모듈 생산발전 사업

연락처
052-280-0800
이메일
jmjung@luxco.co.kr
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매의 당사자가 아닙니다.
제조사
브랜드
-
SKU
129199
제품명
Count Relay
모델명
SBCR-103, SBCR-203, SBCR-D24, SBCR-D48, SBCR-D103
사이즈
-
중량
-
제품 상세 정보

Count Relay

COUNT RELAY는 MOTOR의 REACTOR 기동 방식 회로에서 다발적인 MOTOR 기동으로 인한 REACTOR의 과열 소손을 보호하는 목적으로 사용되는 장치로써 기동 제한시간 및 기동 횟수, REACTOR COOLING용 휴지기간을 설정할 수 있도록 기능을 내장하고 있습니다.

특장으로는 조선, 플랜트, 발전, 철강, 석유화학, 수자원 관리 등 열악한 환경에 적합하도록 외장재는 절연강도가 높고 가벼우며, 충격 및 내화학성이 강한 난연성의 PC 재질로 되어 어떠한 조건의 환경에도 쉽고, 안전하게 적용할 수 있습니다.


ORDERING INFORMATION





SPECIFICATIONS

POWER INPUT RATINGAC
85~135V
50 / 60Hz
AC
176~264V
50 / 60Hz
DC 18~30VDC 36~60VDC 88~135V
POWER CONSUMPTION3VA [max.]
INPUT SIGNAL"a" or "b" contact selectable
START ALLOWED TIMER SETTING
RANGE
Run mode 4 step [30-60-90-120min.]
Test mode 4 step [1-2-3-4min.]
BLOCKING TIMER SETTING RANGERun mode 4 step [30-60-90-120min.]
Test mode 4 step [1-2-3-4min.]
COUNT PULSE SETTING RANGE3 step [2-3-4 cycle]
SHIFT TIME1 sec. / cycle
OUTPUT CONTACT RATING [2c]DC 30V 5.0A [resistive] 3.0A [inductive p.f=0.4]
AC 250V 5.0A [resistive] 2.0A [inductive p.f=0.4]
DIELETRIC STRENGTH2.5k V between all terminals and encloser
ENCLOSUREMATERIALPC[polycarbonate] - Flame retardant [UL94 V-O]
- TRIREX3025G10 / Glass fiber reinforced
DIELECTRIC
STRENGTH
31kV / mm
AMBIENT TEMPERATURE RANGE-20 ~ +45℃
