TOPRD1510X + TOPRP10D
15", 스탠다드 모델, 해상도:1024x768

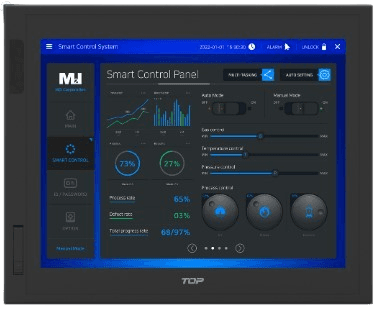

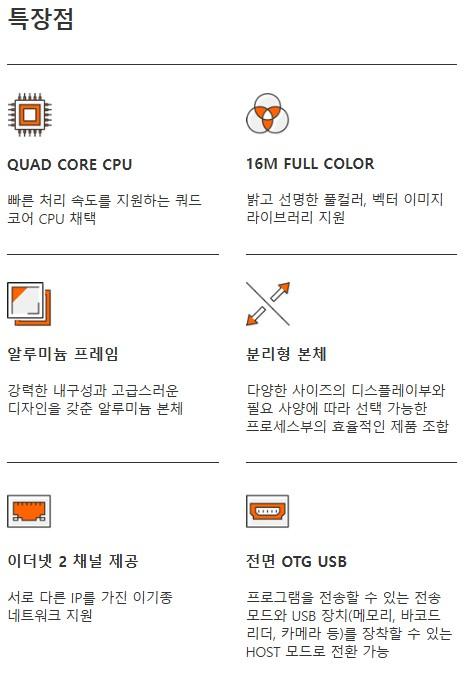

◆ 쿼드코어 CPU
◆ 고급스러운 알루미늄 바디
◆ 화면과 본체의 분리
◆ 3접점 동시인식 멀티 터치, 제스처 조작
◆ 밝고 선명한 풀칼라 LCD
◆ 확장된 인터페이스
- 시리얼 3포트, 이더넷 2포트, USB
1. 성능사양
TOPRD1510X

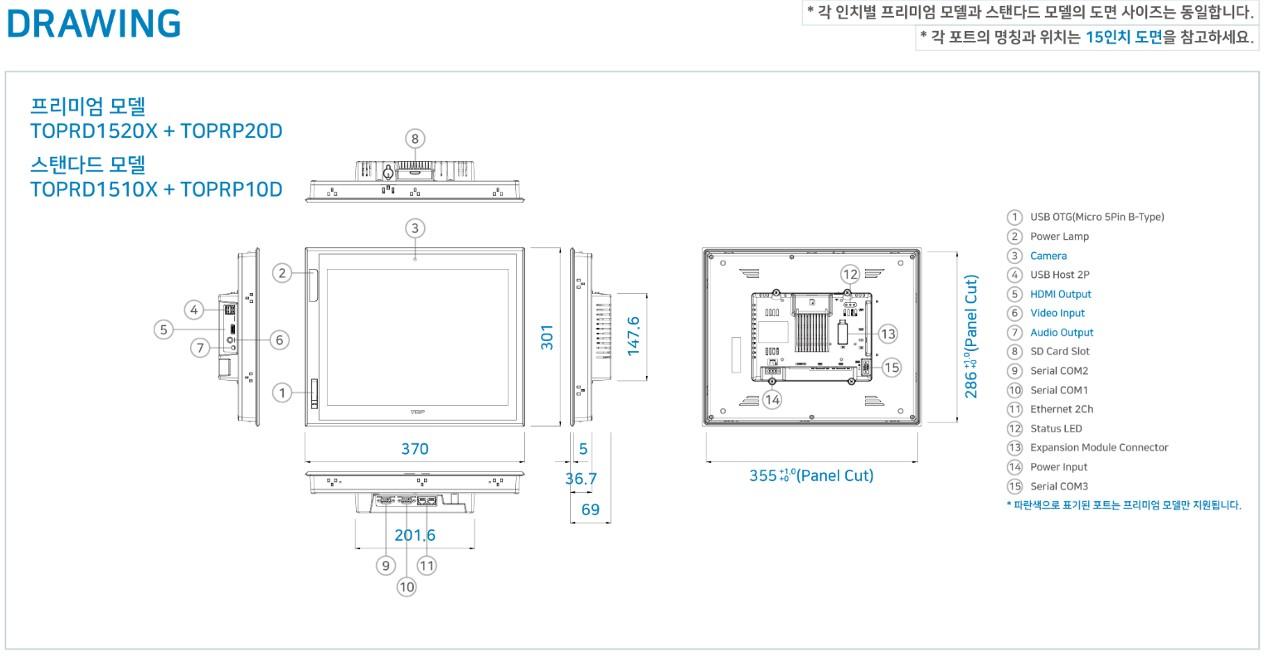

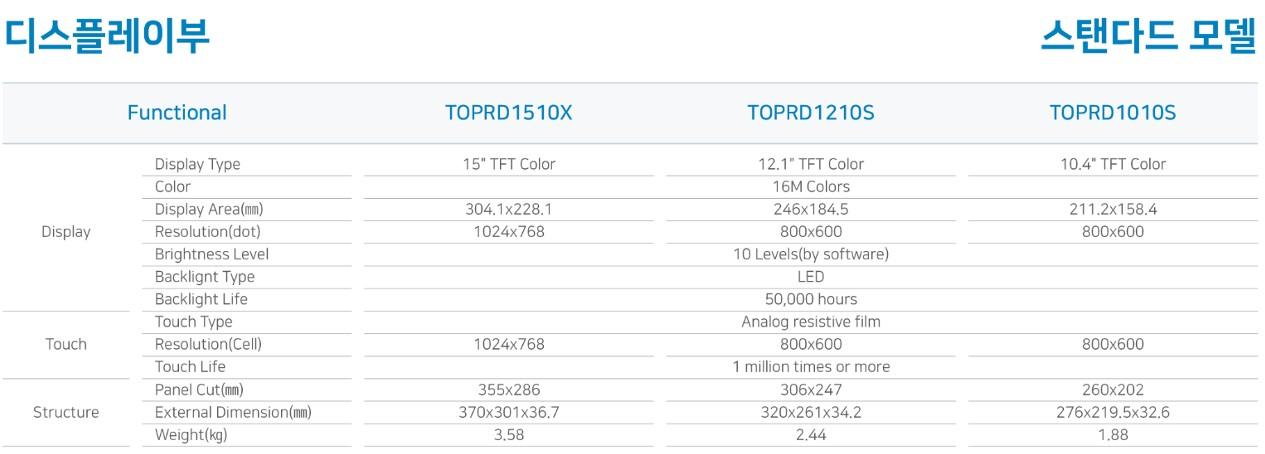

Display | Display Type | 15' TFT Color |
---|---|---|
Color | 16M Colors | |
Display Area(㎜) | 304.1x228.1 | |
Resolution(dot) | 1024x768 | |
Brightness Level | 10 Levels(by software) | |
Backlight Type | LED | |
Backlight Life | 50,000 hours | |
Touch | Touch Type | Analog resistive film(Multi Touch) |
Resolution(Cell) | 1024x768 | |
Touch Life | 1 million times or more | |
Structure | Panel Cut(㎜) | 355x286 |
External Dimension(㎜) | 370x301x36.7 | |
Weight(kg) | 3.58 |
- TOPRP10D

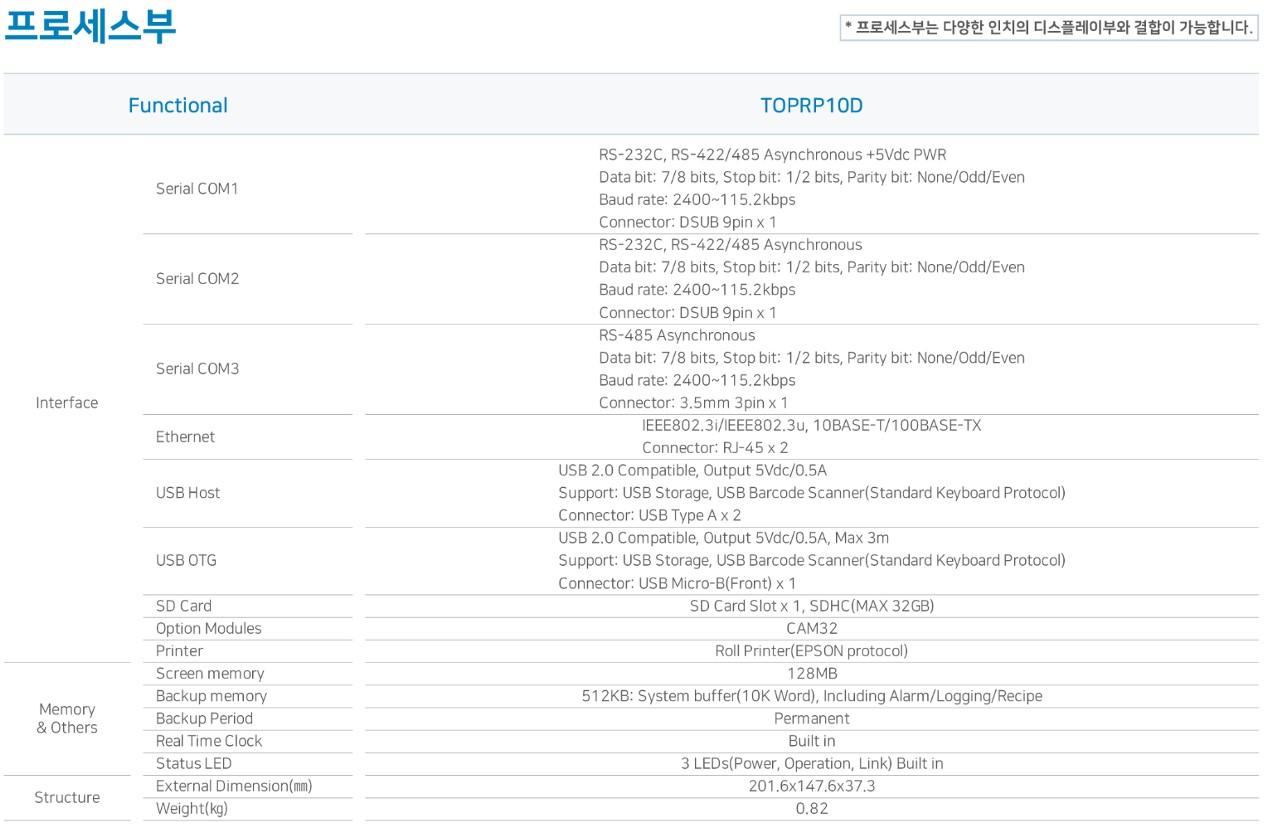

Interface | Serial COM1 | RS-232C, RS-422/485 Asynchronous +5Vdc PWR Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400~11 ![]() Connector: DSUB 9pin x 1 |
---|---|---|
Serial COM2 | RS-232C, RS-422/485 Asynchronous Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400~11 ![]() Connector: DSUB 9pin x 1 |
|
Serial COM3 | RS-485 Asynchronous Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400~11 ![]() Connector: DSUB 9pin x 1 |
|
Ethernet | IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: RJ-45 x 2 |
|
USB Host![]() |
![]() Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol) Connector: USB Ty ![]() ![]() |
|
USB OTG | USB 2.0 Compatible, Output 5Vdc/0.5A, Max 5m Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol) Connector: USB Micro-B(Front) x 1 |
|
SD Card | SD Card Slot x 1, SDHC(MAX 32GB) | |
Option Modules | EtherCAT, CANopen, CAM32 | |
Memory
&Others
|
Screen Memory | 128MB |
Backup Memory | 512KB: System buffer(10K Word), Including Alarm/Logging/Recipe | |
Backup Period | Permanent | |
Real Time Clock | Built in | |
Status LED | 3 LEDs(Power, Operation, Link) Built in | |
Structure | External Dimension(㎜) | 201.6x147.6x37.3 |
Weight(kg) | 0.82 |
2. 일반사양
Display + Process Specifications
Power | Input Voltage | 24Vdc(20~28Vdc) |
---|---|---|
Power Consumption | 18W or less | |
Voltage Sag | 24Vdc, Within 10㎳ | |
Insulation Resistance | 500Vdc, 10㏁ | |
Environment | Operation Temperature(℃) | -10 ~ +50 |
Storage Temperature(℃) | -20 ~ +60 | |
Operation Humidity(%RH) | 0 ~ 90(No Dew) | |
Atmosphere | No corrosive gas | |
Vibration Endurance | Amplitude: 10≤F<25㎐(2G) X,Y,Z each direction(for 30 minutes) | |
Noise Immunity | 1000Vp-p(Pulse width 1㎲) | |
Static Electricity Discharge | Connective discharge from EN61000-4-2: ±4㎸ | |
Shock Endurance | 10G X,Y,Z each direction(for 3 times) | |
Ground Connection | Class 3(100Ω or less) | |
Protection Classification | IP65(Front) | |
Certification | CE, KC, UL | |
Structure | Weight (kg) | 4.4 |
Cooling System | Natural air circulation | |
Case material | AL(Aluminum) |
