Magplus PCU & PM Generator for UCAV

PCU for PM GENERATOR

1. Appllication
   UCAV (Unmanned Combat Aerial Vehicle)
2. Specification
    29Vdc @180 ~ 375Vdc
    Rated Power 4kW
3. Main feature of Product
   Low noise (Load sharinig)
   High efficiency
   Dynamic load capability (1MHz)
   Compact design (Fuel cooling)



Magplus PCU & PM Generator for UCAV  1

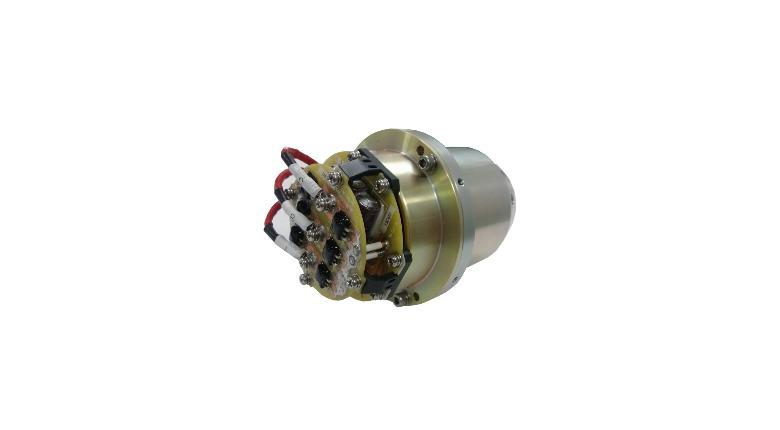

PM Generator for Turbo-fan Engine

1. Product Summary
    PM (Permanent Magnet Synchronous Rotor) generator is mounted on inlet frame of turbo-fan engine
    and rotates at the speed of engine producing variable frequency and voltage of AC power.
2. Specification
    Rated Power : 5kW
    Maximum Operating Speed : 35,200 RPM
    Cooling : Induced Air
3. Advantages
    Higher efficiency than homo-polar machines
    Smaller and lighter

매그플러스
터보 냉각제 압축기, 터보 압축기/장치, 자기 베어링, 최고속 PMSM 장치
We, Magplus, are specialized on designing and fabrication of high-speed motor applications and high-power conditioning systems, such as axial turbo fan, turbo compressor/blower, magnetic bearings and high speed PMSM drives. They are called DDS(Direct Drive System) that concerns with the demand of lighter in weight, faster in speed, and higher in efficiency. Based on the technology of design and test skills for high speed PMSM applications, we are ready to fulfill customer's satisfaction.
