Deltaflow - Pitot

모델명

시리즈

피토관


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


032-512-6230

제품 상세 설명

For Portable Measurement

The deltaflow pitot is the portable counterpart of the deltaflow DF 25. It is the ideal sampling instrument for performing integrated measurements according to DIN 2640 standards. It possesses the same highly precise profile as the deltaflow DF25 and is used to verify and calibrate existing measurements. The dataflow pitot is currently in use, for example, in power plants, by measurement teams, and-in the heating and air conditioning industry-to test airflow efficiency, air intake and exhaust, or to test the efficiency of ventilators.

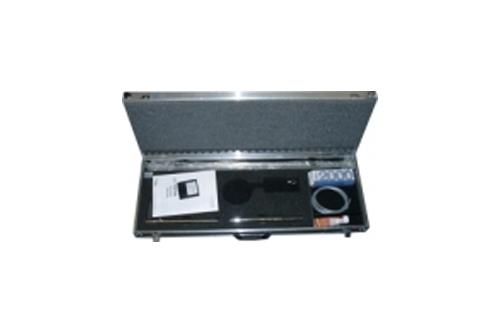

Because the deltaflow pitot can be disassembled, it can be comfortably transported in a carrying case. Its straight construction design allows it to be easily inserted into the sampling cross-section through previously-existing apertures. The sampling profile is extremely impervious to pollution or to the accumulation of condensation. The highly durable stainless steel and the non-sealed design resist temperatures of 1040°C in constant application and can withstand temperatures of up to 1200°C for temporary measurements.





Specification

Media

  • Gasses
    Conduit / Channel Diameter:
  • 100..8500mm
    Process Requirements:
  • -250..1200 °C
  • 0..6 bar
  • ultra-pure through highly polluted, aggressive gasses





Certificate

Calibrated at the Department of Flow Technology at the University of Erlangen
