3 Roll Section Bending Machine
모델명
-
시리즈
-
자료
Catalog-MG SRL-Section Bending Machine-AR-ARL Line
구매정보
provider logo
MG SRL
이탈리아 철판 벤딩기 제조업체, Sheet Bending기계
연락처
+39 39-0172-691327
이메일
info@mgsrl.com
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매의 당사자가 아닙니다.
제조사
브랜드
-
SKU
129798
제품명
3 Roll Section Bending Machine
모델명
-
사이즈
-
중량
-
제품 상세 정보

They are more powerful machines, with superior capacities at a competitive price, to roll all types of profiles. Configuration of planetary movement forming rolls to minimize flat parts. The three rolls are driven by three independent hydraulic motors and three planetary gears connected directly to each roll to achieve a higher torque transmission.


Special nylon tooling can be installed when aluminum profiles are to be bent, furthermore special three-dimensional lateral hydraulic guides support and accompany the curved profile during processing.


These machines can work both vertically and horizontally.


CNC automation is possible. This MG bending machine offers the best results for bending special and standard profiles and tubes in mild steel, stainless steel, aluminum, bronze, copper and other steel alloys.

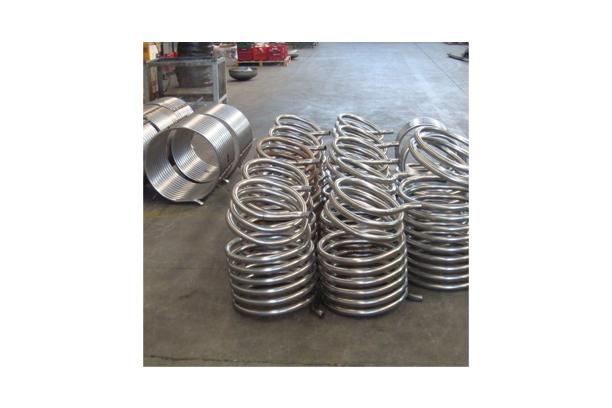

MG’s AR section rolls HT version for spiral pipes making has shorter shafts, reinforced motorisation to increase the power in order to obtain smaller diameters, side guides more powerful for better push and pitch control, in addition there is a small calibration roll in order to guarantee the pass precision, a front support with up/down and push/pull movement to give the operator a 360 degree control of the job. The aim of our engineers is to make the most of the machine accessories mechanical and hydraulic the same as if they were an extension of the operators arms but more powerful.


In ARL version the bending side rollers move on a rectilinear axis which reduces the space between the rollers themselves. In this way the pinching point of the profile between the lateral and the upper occurs in less space. The linear guides obtained by the machine structure allows to work smaller diameters with high precision, accuracy and stability. The straight part at the end of the profile is exceptionally reduced, the result is an optimal profile in all its parts.

MG SRL이탈리아 철판 벤딩기 제조업체, Sheet Bending기계
THE STORY The MG SRL was born in Fossano, in the Cuneo area, in 1959; founded by Giovanni Roccia and Bruno Giraudo, takes its first steps as a contracting workshop of the “Bongioanni Spa”. In 1981 the construction of bending machines for sheet metal and profiles began. A few years later, it allows to concentrate efforts and investments aimed at improving production. With a branch in Forlì, the leading company in the construction of sheet metal bending machines, has subsequently specialized under the guidance of the members Massimo Roccia and Giorgio Giraudo, sons of the founders, and Franco Barca who deals with the design in the branch. In 2010, with more than 60 employees – including many specialized technicians -, MG srl was the protagonist of the world scenario thanks to the creation of the largest grille ever built: the “MG32520Z”, it is 7,70 meters high, 7,10 meters wide, 13,70 meters long and weighs 350 tons, which allows it to bend sheets of sheet 3 meters wide 25 cm thick     TODAY In November 2011, MG srl becomes the protagonist of a technical and constructive renewal, thanks to the acquisition of Delsy Srl, currently 75% controlled, an Italian manufacturer of numerical controls, among the best known in the global panorama of the sector: thanks to this union, the MG machines become more reliable and beautiful, while maintaining the right quality / price ratio. With its 90 employees, on a surface of 6000 square meters covered and a total of 12,000 square meters of land, MG srl currently covers 60% of the Italian market and exports its machinery to the United States, Latin America, China, New Zealand, Emirates Arabic, Australia, Vietnam. MG bending machines are designed and manufactured to obtain performances equal to 3 times the diameter of their upper roll with 260N / mm2 yielding sheets and are able to meet any need for plate bending, through a wide range of models with useful working length from 500 mm to 8000 mm and capacity from 1 to 300 mm.       CERTIFICATES
