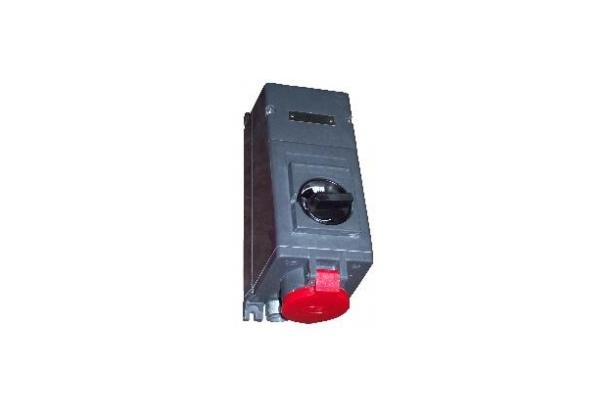

Product Name | EFPR32A(R) (ExplosionProof) |
Cateogory | PlasticPlug & Receptacle- |
Model | EFPR32A(R) |
Explosion Proof | Ex de IIC T6 IP66 |
Conduit Size | |
Lamp | |
Rating | AC690V / 32A |
Watt |
Standard Materials
▷ Housing : Glass fiber reinforced polyester resin
▷ Gasket : Silicone rubber
▷ External Hardware : Stainless steel, Brass
Feature
▷ Enclosure in glass fiber reinforced polyester resin, provide excellent resistant to corrosion so have a long life.
▷ Enclosure contain ultraviolet interception ingredient to resist transformation.
▷ Switches with large handles can be locked in 0 and 1 position.
▷ Fully color-coded plug enclosure in color for voltage and frequency.
Dimension
