상세설명

■ Selectable Low pass Filter
■ Company logo international characters can be displayed through the Large graphic Display panel.
■ Data Acquisition Software is very useful program for the customer to down load the test data through the MS Excel automatically.
■ Easy upgrade thorough the software.
■ Size : 185(W) × 105(D) × 55(H)
   Caring bag : Aluminium hard bag

시리즈특징

■ System Accuracy +/- 0.5% of reading from 20% to 100% of full scale.
■ System Accuracy +/- 1% of reading from 10% to 20% of full scale.
■ Recommended for all hand screwdrivers, wrenches or power tools.
■ Selection of two operating modes: (Track and Peak)
■ Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm).
■ Features built-in Quick Test operation.
■ Includes three PC Windows based software programs:
■ Mountz EZtorQ Meter Interface Program - for sensor calibration, and Quick test download.
■ Torque Meter Bootloader - for updating the EZtorQ operating systems.
■ "Excel Add-In" - for Real-Time data collection into an Excel spreadsheet. It also provides statistics calculations
■ “Flash" memory allows upgrades to be done by the user in the field & internet through the RS-232 port.
■ Easy to use Menu Structure.
■ Six-digit display.
■ RS-232 interface to download readings to PC.
■ High Capacity Li-Ion Batteries for long life
■ The unit will store a total of up to 150 data points.
■ Real time graph of torque vs. time using associated PC Windows software.
■ Features Go / No Go LEDs that illuminate when high or low tolerance setting is achieved or out of tolerance

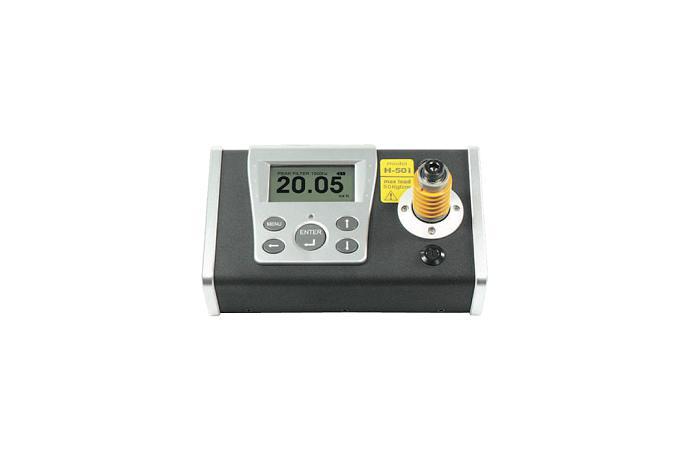

제품외관

옵션모델
