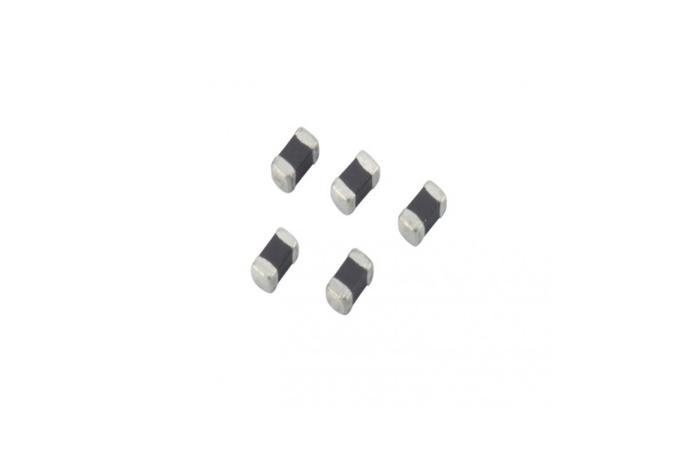

NTC Thermistor for surface mounting applications
■ High solderability and stability
■ Excellent in cost performance and compact sizes
■ Corresponding to the high B value
■ Suitable for both flow soldering and reflow soldering
■ Available for Tape and reel packaging for automatic placement
■ RoHS Complaint
Operating temperature range | -40 ~ 125°C |
Temperature accuracy Tolerances | ±1°C, ±2°C, ±3°C |
Resistance range at 25℃ | 10 ~ 350㏀ |
Resistance Tolerances | ±1%, ±2%, ±3%, ±5%, Special |
Dissipation constant | 1~3mW/°C |
Size(L×W) | 0.6×0.3mm, 1.0×0.5mm, 1.6×0.8mm, 2.0×1.0mm |
■ Mobile communication(TCXO, RF dircuit, LCD panel, Battery pack)
■ Personal computer and peripheral device
■ Video camcorder and car audio
■ Optical communication
Sentrion specializes in customized products. Please contact us for various options.
