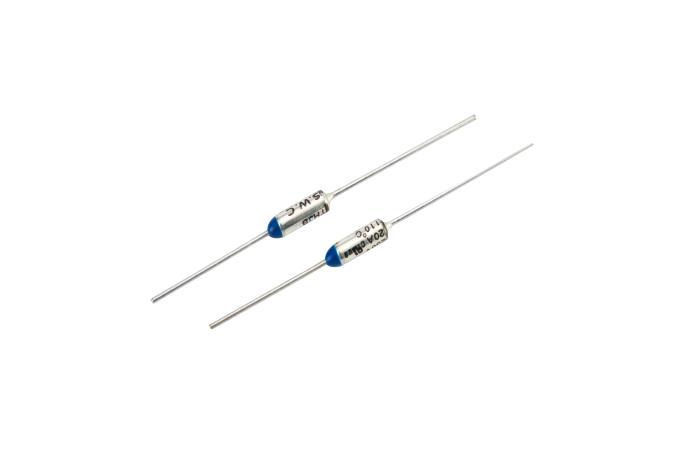

SW-3 Series uses thermally stable insulation type organic material
■ Thermally stable insulation type with organic material as a fusible element
■ Metallic Case, Axial, Spring action type
■ Compact, high current capacity, sensitive to ambient temperature
■ Single operation for over-temperature protection
Rated Voltage | 250VAC and 240VAC |
Rated Current | 20A at 250VAC and 21A at 240VAC |
Interrupting Current | 250VAC, 31.5A |
■ Electric home appliances : Refrigerator, TVs, Computers
■ Cook appliances : Grills, Induction cookers, Gas Stoves, Fryers
■ Heating devices : Boilers, Hot water appliances, coffee machine
■ Beauty appliances : Hair Driers, Hair Straighteners
Sentrion specializes in customized products. Please contact us for various options.
