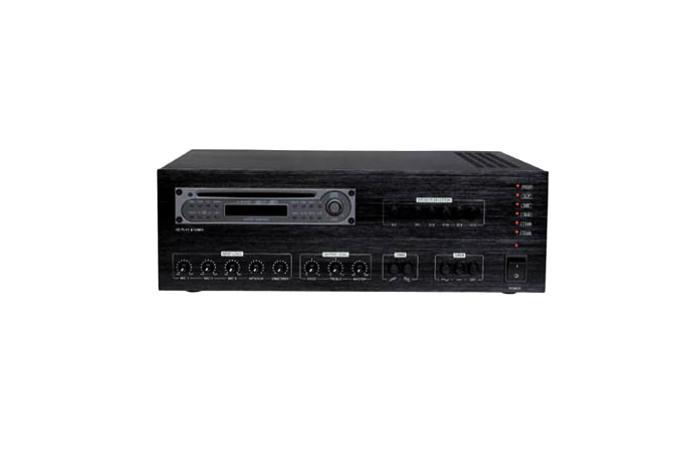

Feature of Product
•Being connected with the fire detector, it ensures the unmanned activation of siren and emergency escape alarm in case of fire.
•With its built-in voice file, it ensures the activation of emergency escape alarm, and is capable of recording the‘ escape alarm broadcasting’with its built-in key microphone(16 seconds).
•It has 16 speaker-controlling circuits. The REMOTE can be controlled remotely, depending on the overall operation function and circuits(16 circuits).
•No additional device is required because the amplified output monitor and chime function were added.
Size and Function
•Voice file : Operation Memory (16 Sec)
•EM MIC : Uni-directional dynamic Microphone
•CHIME : UP, DOWN (4-tone)
•Monitor Speaker : 1W/8Ω
•Monitor Selector : 5CH
•Speaker Selector : 16CH
•Remote Control 1,2 : 16CH
•Fire Control : 16CH
•Amp Input,Output : 16CH
•Power Source : DC24v
•Weight : 4.9kg
•Dimensions : 483(W) x 89(H) x 320(D)mm

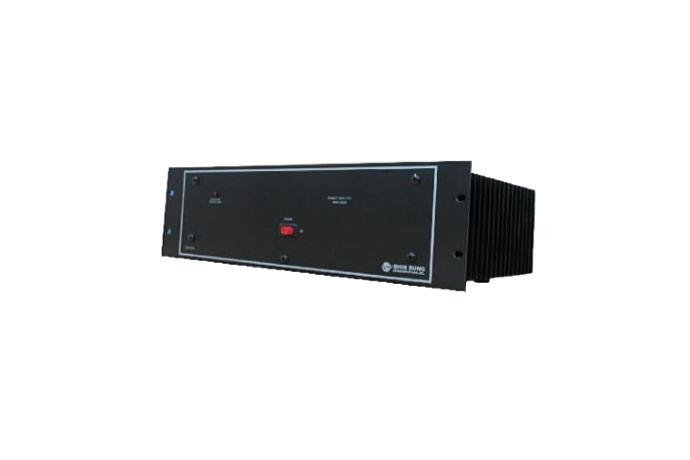

Feature of Product
•Being connected with the fire detector, it ensures the unmanned activation of siren and emergency escape alarm in case of fire.
•With its built-in voice file, it ensures the activation of emergency escape alarm, and is capable of recording the ‘escape alarm broadcasting’with its built-in key microphone(16 seconds).
•It has 16 speaker-controlling circuits. The REMOTE can be controlled remotely, depending on the overall operation function and circuits(16 circuits).
•The emergency escape alarm sound can be activated manually based on the interlocking operation system in case of fire.
Size and Function
•Operation Selector Switch : Manual, auto
•Input :-50dBm/1.2kΩ(UNBALANCED)
•Output : 0dBm/600Ω(BALANCED)
•Frequency Response :-3dB(200Hz ~ 10KHz)
•Distortion : 0.5%(200Hz ~ 10KHz)
•Voice file : Operation Memory(16 Sec)
•EM MIC : Uni-directional dynamic Microphone
•S/N : 60dB
•Power Source : DC24V
•Weight : 2.5kg
•Dimensions : 270(W) x 89(H) x 320(D)mm

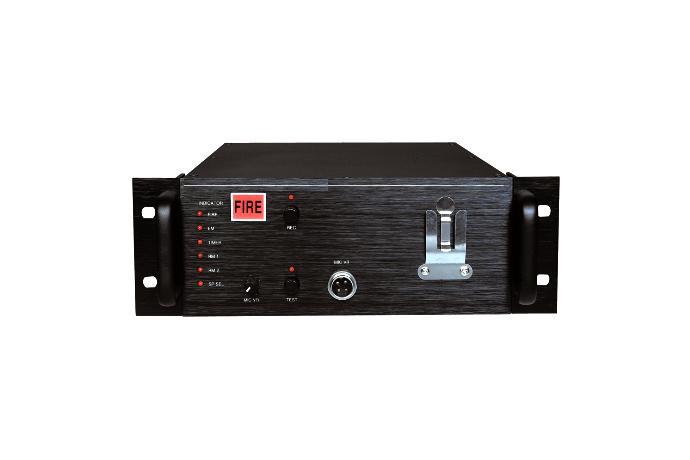

Feature of Product
•Being connected with the fire detector,it ensures the unmanned activation of siren and emergency escape alarm in case of fire.
•With its built-in voice file, it ensures the activation of emergency escape alarm, and is capable of recording the ‘escape alarm broadcasting’with its built-in key microphone(16 seconds).
•It has 16 speaker-controlling circuits. The REMOTE can be controlled remotely, depending on the overall operation function and circuits(16 circuits).
•The emergency escape alarm sound can be activated manually based on the interlocking operation system in case of fire.
Size and Function
•Integrates with fire alarm system
•External auto announcement available with voice file
•Function test switch
•Operation Selector Switch : Manual, auto
•Input :-50dBm/1.2kΩ(UNBALANCED)
•Output : 0dBm/600Ω(BALANCED)
•Frequency Response :-3dB(200Hz ~ 10KHz)
•S/N : 60dB
•Distortion : 0.5%(200Hz ~ 10KHz)
•Voice file : Operation Memory(16 Sec)
•EM MIC : Uni-directional dynamic Microphone
•Power Source : DC24V
•Weight : 4.1kg
•Dimensions : 483(W) x 89(H) x 320(D)mm
