NAME |
TYPE |
P2 (KW) 50HZ / 60HZ |
Q MAX 50HZ |
H MAX 50HZ |
DN |
KN37 DC |
DC 24V |
0.17 |
12 |
37 |
1/4G |
KNP37 DC |
DC 24V |
0.17 |
12 |
37 |
1/4G |
KN37 MD DC |
DC 24V |
0.17 |
12 |
37 |
1/4G |
CHARACTERISTICS
- Continuous duty S1.
- 2 pole motor.
- Insulation class F.
- Protection IP42 (IP 54 on demand).
- IE3 efficiency class for 3-phase motors >0.75 kW.W
- orking tolerance: +/- 10%.
- Liquid temperature (with anti-freeze additive): -20 °C / +90 °C.
- Limit ambient temperature : +40 °C.
- Normal priming, manometer suction up to 5m.
- For clear waters/oils and non-aggressive dilutions, without abrasive substances.
Hydraulic characteristics for water 20°C at nominal pump speed. Tolerance according ISO 9906-2012
ON REQUEST
- Special voltages.
- 60Hz version.
- Dual-frequency.
- Special fluids with temperature <180°C.
- UL/CSA.
MATERIALS
- Casing CuZn / RYTON
- Impeller CuZn / PEEK
- Shaft AISI420
WEIGHT
- KN37 DC - 2.4 Kg
- KNP37 DC - 2.2 Kg
- KN37 MD DC - 2.5 Kg
IN ACCORDANCE WITH
- EN 60034-1
- EN 60034-30
- EN 60335-1
- EN 60335-2-41

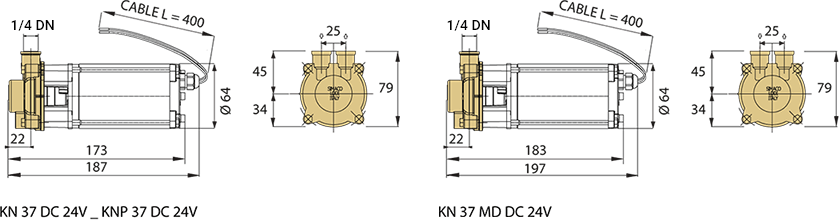

DIMENSIONS
![](https://cdn.komachine.com/media/product-desc/8d4ad476-0fe8-4fdb-878f-d83a4bb445c8)

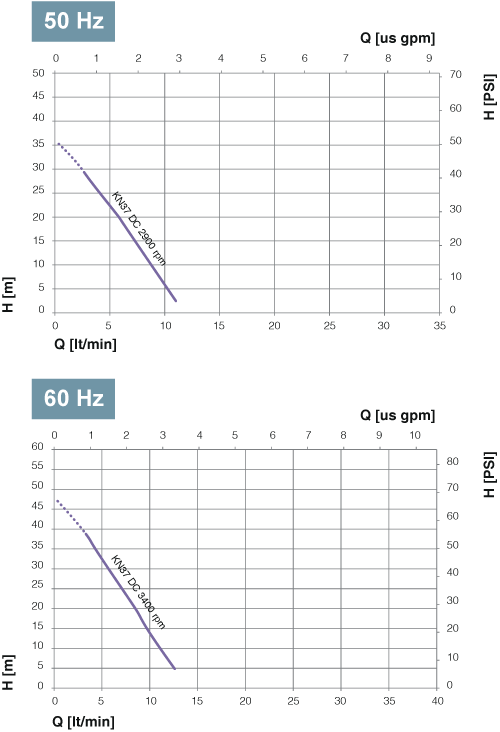

HYDRAULIC PERFORMANCE
![](https://cdn.komachine.com/media/product-desc/868aa153-c6f1-43b9-88f3-71f4cb958bae)
