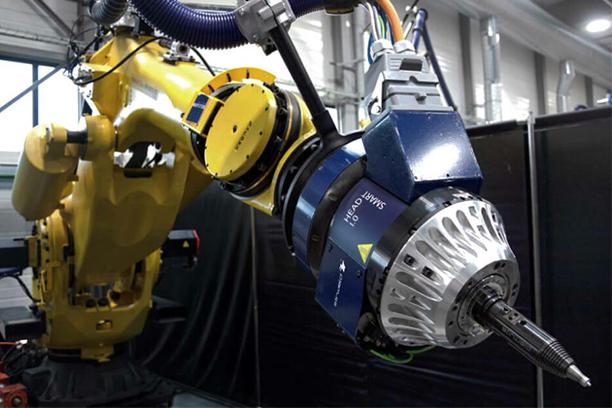

FSW spindle for robot -Our robotic FSW solution allows you to weld with any high payload robot. -Our FSW spindle for robot brings the functions of Friction Stir Welding to a standard industrial robot. -Your robot becomes a hybrid tool combining welding and machining with an automatic tool changer. -This hybrid welding and machining spindle for robot opens up a wide range of applications: 3D welding, welding of large parts, welding of panels longer than 10 metres.
|
 |
|
FSW SPINDLE FOR ROBOT ADVANTAGES NO HYDRAULIC POWER -Less expensive, no maintenance (electrical and pneumatic power) AUTOMATIC TOOL CHANGER -Automatic management of FSW tool lifetime No human operation ADAPTABILITY -Compatible with all high payload robot and suitable for all robot integrators WIDE RANGE OF APPLICATIONS -Welding of large parts, 3D welding, welding of panels longer than 10 metres FSW EXPERTISE -Prototyping and qualification of parts at Stirweld and transfer production to the customer HYBRID FSW SPINDLE -Welding and milling on one workstation thanks to an automatic tool changer
|
 |
FSW SPINDLE FOR ROBOT CHARACTERISTICS
|
TECHNICAL SPECIFICATIONS OF STIRWELD FSW SPINDLE FOR ROBOT: -Rotational speed up to 10 000 RPM for high welding/milling speed -Automatic tool changer for FSW tool lifetime management and/or milling operations -Maximum payload of 18 kN -Full water cooling for high productivity -Full monitoring for 100% online quality control (according to EN 9100 standard) -Full electrical and pneumatic power (no hydraulic power)
|
 |
FEATURES OF STIRWELD FSW PROCESS ON ROBOT WORKSTATION
-The main function of the FSW spindle for robot is to manage the force applied by the FSW tool.
-A sensor is used to measure, control and record the force applied during the welding operation to ensure quality control.
-The design of the robotic-based solution for FSW protects it from vibrations and forces as well as from heat generated during welding.
-Indeed, a cooling circuit is integrated to protect the spindle and the robot from the heat generated during welding.
-The Stirweld FSW spindle for robot is therefore suitable for mass production and ensure the quality of the FSW process by providing a constant FSW tool temperature.
-Temperature sensors are integrated into the spindle to monitor the temperature and to prevent overheating.
|
QUALITY CONTROL FORCE CONTROL -Force control according to tool axis (forging force or downward force) COOLING SYSTEM -Integrated cooling circuit to protect the spindle during welding & to cool down the FSW tool SPINDLE PROTECTION -Protection against the heavy loads and vibrations of the FSW process AUTOMATIC TOOL CHANGER -Automatic quick tool change (welding/milling or FSW tool change) FORCE RECORDING -Recording of the forging force and the temperature of the spindle EN 9100 STANDARD -Full monitoring according to EN 9100 standard
|
 |
HUMAN MACHINE INTERFACE
Stirweld FSW spindle for robot is a perfect example of the Industry 4.0 advent with its connected system:
HMI basic functions
…and other basic functions: spindle temperature, spindle cooling efficiency, spindle usage, warning pop-up.
HMI Advanced Functions
Stirweld FSW solution for robot offer you advanced functions for 100% quality control of your welding operations:
|
-FSW weld temperature measurement -Real robot tilt angle -Friction Stir Welding vibrations -Power supply cabinet |
 |
