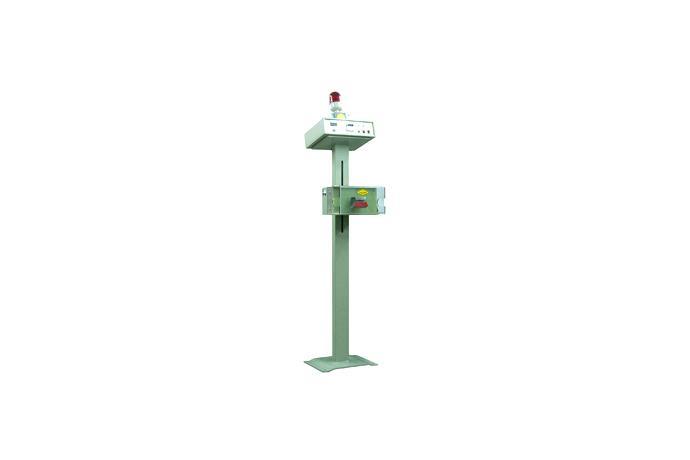

Among the in-line facilities used for cable production, one of the most important tools is a spark tester.
It is easy to control. You can separate the compact designed controller and detector for installation.
Product Specs
| TYPE | SPECIFICATION |
| Output voltage | 100 ~ 15,000v |
| Output frequency | 2500 ~3500Hz depending on lord capacitance |
| Load Current | Resistive 4mA, Capacitive 35mA |
| Voltage indication | 4 Digits LED |
| Fault indication | 5 Digits electrode mechanical counter |
| Line speed | Max 1300mpm |
| Fault indication | LED lamp and Optionally aviailable. alarm unit |
| Contace outputs | Spark faults relay 250V 5A, Excess faults relay 250V 5A |
| Interface | Be able to adjust output voltage and reset from our of tester. |
