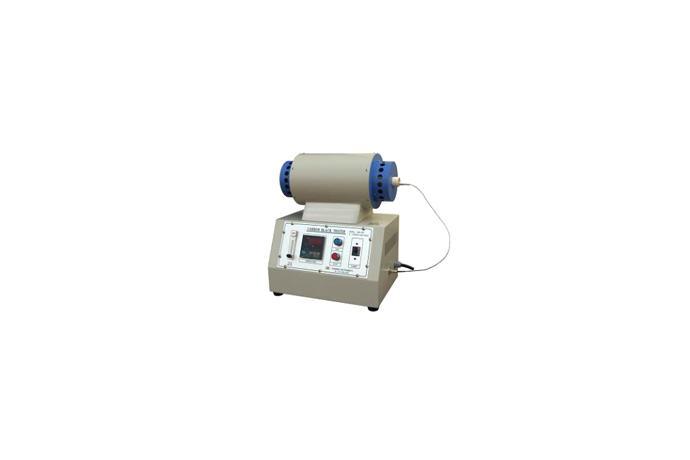

This tester is used to measure the amount of carbon black containing polyethylene, polypropylene, and polybuthylene. The amount of carbon black is determined by weighing the sample which is thermally decomposed in N2 gas. To thermally decompose a sample, an electrical furnace and accessories are available.
Product Specs
Model | SM-CBT-60L |
Temperature control type | Digital Program P, I, D Control |
Heater capacity | 2KW |
Temperature control range | 0~900°C ±1°C (Max) |
Safety device | over-temperature prevention sensor |
Combustion plate | 29(D)mm x 600(L)mm |
Temperature sensor | K-Type (CA) |
Attached device | flow gauge 10ℓ / min, trip, drying tube, stopper, glass tube |
Size | 500(W) X 450(H) X 340(D)mm |
Power | 220VAC 50/60Hz 1Phase |
