TELDA Process Controller Hicom Series

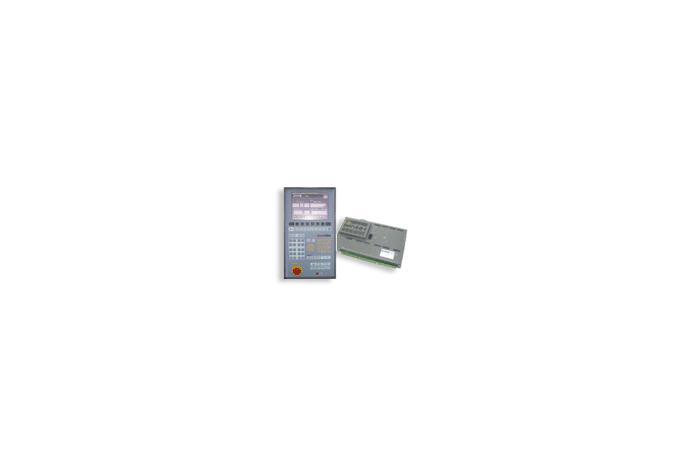

Hicom600 Hydraulic Controller

 * PLC unit + OP’unit
 * 800 x 600 TFT LCD with LonWorks connected.
 * Built in Operation Keys.
 * 40DI + 40DO (SSR)
 * 8Ch of Temperature PID control
 * 6 Analog for Positions pressure and Injection speed
 * Optional 2 Encoder Inputs
 * Upto 8000 step ladder programmable with 800 Function blocks editable
 * Remote monitoring by LonWorks (Option)


TELDA Process Controller Hicom Series 1

Hicom700s All Electric Controller

 * 2㎳ scan time (PLC)
 * 4 Axis servo motor drivers
 * 100㎲Feedback loop system
 * Fully digital controlled with pressure control functions
 * TFT 800 x 600 OP unit with Touch keys.
 * 40DI + 40DO (SSR)
 * 8Ch Temperature (TC) PID control
 * 2 Encoder Input for Mold adjust


 TELDA Process Controller Hicom Series 2
Hicom700h Econo Controller

 * Hydraulic machines or Hybrid
 * Low Cost High Performance
 * Within 3㎳Scantime (PLC)
 * OP unit to PLC 156 kbps modbus.
 * For Toggle or direct machines
 * 800 x 600 TFT LCD
 * Remote monitoring through LonWorks or TCP/IP modbus (Option)
 * Analog position or optional Incremental Encoders
 * 8Ch Temp control and extensible upto additional 8ch


Process Control, Servo Control, Lonworks Control, Renewable Energy Control and ETC
TELDA is a renewable energy company manufacturing solar PV and wind power inverter and converter, engineering systems for renewable power generation, and offering solutions for energy efficiency. TELDA Electronics, the company established in 1985 and based on Korea, is one of the leading manufacturers who produce industry process controller in Asia. Our company has offered a wide range of industry process controller related products and services on the basis of self-developed technology. Researched and developed from the early stage of the company, the technology of process controller, such as Lonworks based controller and fieldbus network technology, has been the primary specialty of Telda Electronics. Telda has provided mechanical engineering as well as manufacturing of OEM controllers for industry machines such as injection molding machine, using stable and accurate integrated system. Since 2000, not only has the necessity of new renewable energy development increased but also the market of new regeneration energy has enlarged. In order to lead this world wide trend, Telda electronics both has designed solar inverter and wind turbine inverter technology and has manufactured inverters which enhance efficiency for renewable energy production. We have established TELDA corporation in 2012 in order to extend our product ranges as well as business field. Developing our new products ,such as hybrid inverter, micro inverter, and PCS for ESS, we are to expand our business to global market and continue to focus on not only  B2B business but also B2C business.
