GENERAL

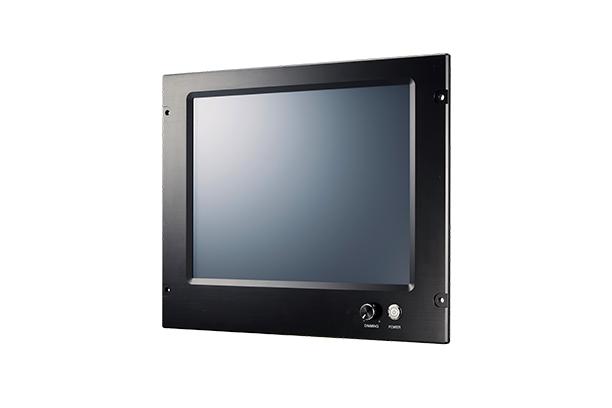

This specification defines the requirements for the TIP-190NT TFT LCD Display Panel PC, which is designed and tailored for use in operator display and computer-operating systems such as AMS, VRC, CPC, SPM and other monitoring, controlling applications.
TIP-190NT is type-approved by ABS, BV, CCS, DNVGL, KR, LR.
KEY FEATURES
- Resistive Touch screen
- RGB, DP and HDMI Display
- LAN Communication
SPECIFICATION
GENERAL FEATURE | ||
---|---|---|
Section | Specifications | |
Display type | LED Backlight , Wide TFT LCD | |
Viewable Size | 19 inch diagonal | |
Resoultion | 1280 x 1024 | |
Aspect Ratio | 5:4 | |
Brightness | 350 cd/㎡ | |
Contrast Ratio | 1000:1 | |
Response Time | 5 ms | |
Active Area | 376.32 (H) x 301.06 (V) mm | |
Viewable Angle | 170° RL / 160° UD | |
Suport Color | 16.7M colors | |
Synchronization Range | 31~80 Hz (Horizontal) 55~76 Hz (Vertical) |
|
Touch type | 5-Wire Resistive | |
Dimming | 3 ~ 100% | |
System | CPU | Intel Core i3-2310M (2.1GHz, 3M) |
Chipset | Intel QM67 Express | |
Memory | 1 x DDR3 4GB SO-DIMM | |
Storage | 1 x SSD 128GB | |
Graphic | Intel HD Graphics 3000 processor | |
LAN | 1 x Intel 82579LM Gb/s Ethernet controller PHY onboard as LAN1 1 x Realtek RTL8111C Gb/s Ethernet controller onboard as LAN2 |
|
Connector Types | 1 x HDMI (Standard) 1 x DP (Standard) 1 x RGB (D-SUB 15p female) 2 x RJ45 6 x USB 2.0 (2 x Front, 4 x Rear) 2 x COM (COM1 : RS-232/422/485, COM2 : RS-485 Only) |
|
Power Specification | 100~230 VAC 50/60Hz (IEC Standard Type) DC18~32V (Terminal Block) |
|
Power Consumption | 100W (MAX) | |
Dimension | 480 (W) x 86.8 (D) x 420 (H) mm | |
Weight | 6.82 kg | |
Temperature Range | Operating : 0° to 60℃ Non-Operating: -20° to 80℃ |
|
Humidity Range | Operating: up to 95% Non-Operating: up to 95% |
|
Supported OS | Windows 7 Professional | |
Option | 1 x DDR3 8GB SO-DIMM (MAX) 1 x SSD 1TB (MAX) Windows XP Windows XP Embedded Windows 7 Embedded |
|
IP-Rating | IP65 Front | |
Certification | ABS, BV, CCS, DNV GL, KR, LR | |
Warranty | 24 months |
DRAWING
