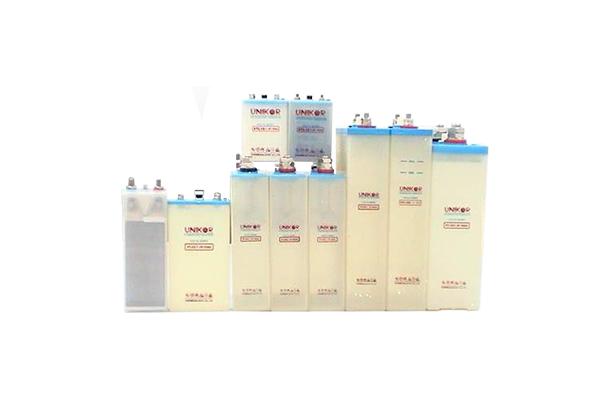

NI-CD Battery
Steel pocket plate structure does not suffer from sudden death or internal corrosion since there is no interaction between the active material and the electrolyte Tough polypropylene casing ensures structural integrity throughout a long life. Specially designed flame arresting flip top vent ensures the battery does not produce corrosive emissions.
APPLICATION
- Railways
- UPS and Power Plants
- Solar Use
- Telecom Tower
FEATURES
- Topping up interval extended by up to two times in standard conditions at +20C and at floating voltage
- Very long life and excellent discharge performance
- Pre-charged, ready to use. Also, enhanced charge accpatance
- Additives in negetive plate for effective recombination at low pressure
- Easy maintenance built in by design such as visible electrolyte level, simple bolted connector for fast installation and allowing the battery to be quickly commissioned
- Pocket Plate construction of electrodes ensures well proven advanatges, reliability and long life
PRODUCTS RANGES
Nickel-Cadmium Rechargeable battery can be divided into four different models according to difference applications and also discharging current
Ultra high discharge rate series VTX
- Ultra High Discharge rate NI-CD Battery (VTX series) is made by sintered type battery plate, which have the properties of rigid construction, small internal resistance, long service life, resistance to over charge and discharge, wide operation temperature (-40 °C to +60 °C), High reliability ,Ultra high discharge rate , which is applicable for those, that discharging current is between (7ItA to 10ItA), the peak current can be 30 ItA, etc, such as the usage in the filed of military, aviation,railway vehicles, AGV, electric power system, boat, internal-combustion engine, Switchgear Tripping and Closing etc.
High discharge rate series VTH
- High discharge rate NI-CD battery (VTH Series) is applicable for those, that discharging current is between 3.5ItA to 7ItA, suitable for High discharge rate application, such as UPS (Up to 30 mins), Switchgear tripping and closing,engine starting, Control of DC motor, water treatment plants etc
Medium discharge rate series VTM
- Medium discharge rate NI-CD battery (CYM) Series is applicable for those, that the discharging current is between 0.5ItA to 3.5ItA, and working time between 30 minutes to 5 hours, such as railway DC power sources, UPS ( Over 30mins), Gas Turbine control, Auxiliary power source for power stations, chemical plants, oil refineries, iron
Low discharge rate series VTL
- Low discharge rate NI-CD battery (CYL) Series is suitable for the application, that discharging current is lower than 0.5ItA, designed for general purpose and standby applications, such as lighting on the train,operation of circuit break, UPS, telecommunication,operation of communication equipments on a ship lighting and air conditioner control on a train,etc.
- Electrolyte: Koh
