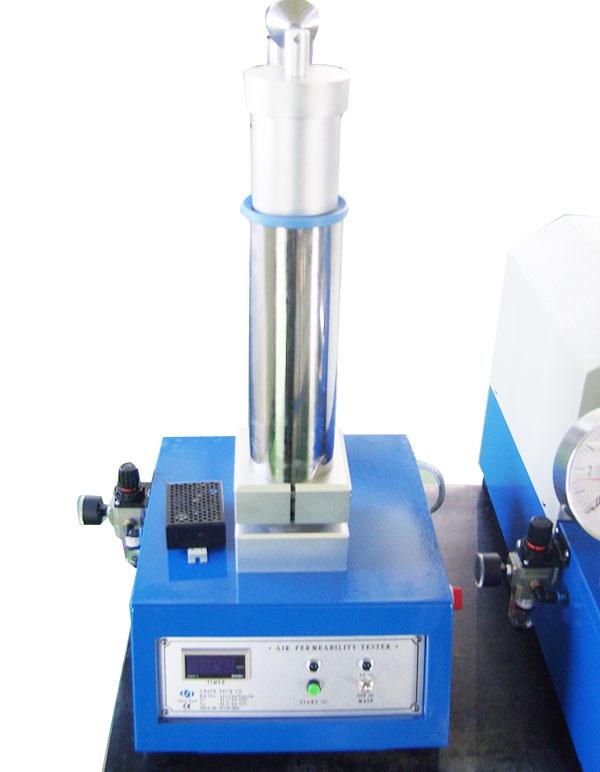

TECHNICAL DESCRIPTION

ㆍBODY SIZE : W300 x D450 x H650

ㆍPISTON VOLUME : 300

ㆍPISTON WEIGHT : 567 0.1g

ㆍCOUNTER : DIGITAL(1/100 Sec)

ㆍAIR PRESSURE : 4 kgf/

ㆍPAPER FIX TYPE : AIR CYLINDER

ㆍBODY MATERIAL : STEEL PLATE(PAINTING)

ㆍPOWER SOURCE : 220V,1

ㆍOIL CYLINDER SYSTEM

APPLICATION

ㆍIN MANUFACTURING AND PRINTING, TO CONTROL THE SELECTION OF MATERIALS AFFORDING THE APPROPRIATE DEGREE OF LIQUID(INK, VARNISH, SIZING) ABSORPTION.C37

ㆍTO TEST FILTERS, POROUS BAGS & MATERIALS WHERE CONTROLLED POROSITY IS ESSENTIAL.

ㆍTO TEST INSULATING MATERIALS FOR AIR RESISTANCE.

ㆍTO SUPPLEMENT OTHER PHYSICAL TESTS ENABLING REGULATION OF THE MANUFACTURING PROCESS TO GIVE THE DESIRED FORMATION, APPEARANCE OR STRENGTH SINCE THERE IS A CLOSE CORRELATION IN A GIVEN MATERIAL BETWEEN AIR PERMEABILITY AND THESE OTHER PROPERTIES.
