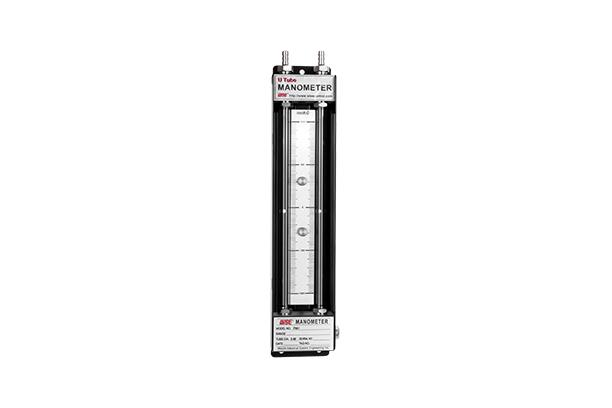

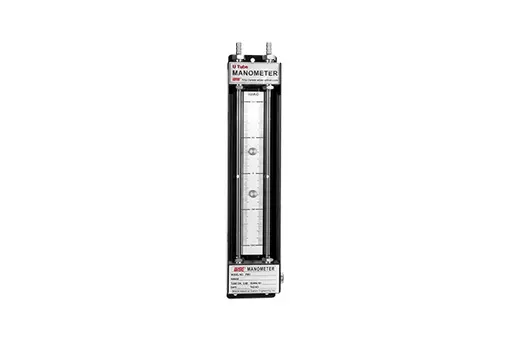

P961 series - "U" type P962, P963, P964 series - Inclined type P965 series - Wall type
Service intended
P960 series manometer is a pressure measuring instrument, and it measures the for calibration of all pressure instruments. It is suitable for measuring low and vacuum pressure.
Scale range |
U type : 0 ~ ±100 to 0 ~ ±600 mm Inclined type : 0 ~ 30, 60 and 150 mm Wall type : 0 ~ 500, 1,000 and 1,500 mm |
Standard features
Pressure connection |
Stainless steel (304SS) tube connection for 8 mm |
Tube |
Material : Glass Outer diameter : 12 mm In diameter : 9.4 mm (P961) 5.0 mm (P962, P963, P964, P965) |
Working temperature |
Ambient : 15 ~ 25 ˚C Fluid : Max. 35 ˚C |
Measuring liquid |
Anti freezing liquid Water |
Scale plate |
White aluminium with stainless steel Black graduation 2 mm |
Base plate |
SCP2, Black painted Option : 304SS |
Mounting |
Surface mounting |
Option |
304SS, Black painted |
