Service intended

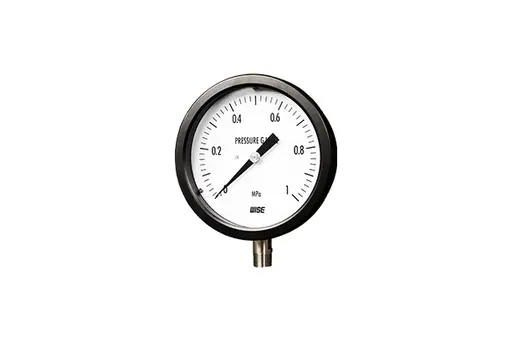

P330 and P335 series are designed for petroleum and chemical processing industries.
| Nominal diameter |
150 mm |
| Accuracy |
±0.5 % of full scale (P335)
±1.0 % of full scale (P330) |
| Scale range (MPa, kPa, bar) |
-0.1 ~ 0 to 0 ~ 200 MPa |
| Working pressure |
Steady : 75 % of full scale
100 % of full scale (P335)
Over range protection : 130 % of full scale |
| Working temperature |
Ambient : -40 ~ 65 °C
Fluid : Max. 200 °C |
| Temperature effect |
Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale |
Standard features
| Pressure connection |
Stainless steel (316SS) |
| Element |
Stainless steel (316SS)
<10 MPa : C type bourdon tube
≥10 MPa : Helical type bourdon tube |
| Case |
Black painted aluminium alloy |
| Cover |
Black painted aluminium alloy |
| Window |
Safety glass |
| Movement |
Stainless steel |
| Dial |
White aluminium with black graduations |
| Pointer |
Black painted aluminium alloy |
| Zero adjustment |
Internal |
| Process connection |
⅜", ½" PT, NPT and PF |
| Certificates |
ATEX Ex II GD c IIc TX |
