Service intended

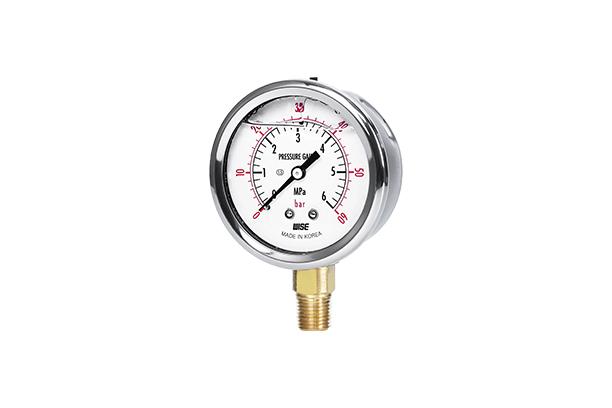

P254 series are designed to measure a high dynamic pressure load and it can be used where severe vibrations are present. It is recommended to be used with a gaseous and a liquid media that are not highly viscous and not to be used where copper alloy parts could be corroded. Its application extends to hydraulics, compressors and shipbuilding.
| Nominal diameter |
50, 63, 75 and 100 mm |
| Accuracy |
±1.5 % of full scale |
| Scale range (MPa, kPa, bar) |
-0.1 ~ 0 to 0 ~ 40 MPa |
| Working pressure |
Steady : 75 % of full scale
Over range protection : 130 % of full scale |
| Working temperature |
Ambient : -20 ~ 60 ℃
-20 ~ 60 ℃ (With glycerin filling)
-40 ~ 65 ℃ (With silicone filling)
Fluid : Max. 60 ℃ |
| Fluid |
Glycerin |
| Degree of protection |
EN60529/IEC529/IP67 |
| Temperature effect |
Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale |
Standard features
| Pressure connection |
Brass (50 and 63 mm)
Nickel plated brass (75 and100 mm) |
| Element |
Brass
<6 MPa : C type bourdon tube
≥6 MPa : Helical type bourdon tube |
| Case |
Stainless steel (304SS) |
| Cover |
Stainless steel (304SS) Crimp ring type |
| Window |
Polycarbonate (50 and 63 mm)
Safety glass (75 and100 mm) |
| Movement |
Brass |
| Dial |
White aluminium with black graduations |
| Pointer |
Black painted aluminium alloy |
| Process connection |
50 and 63 mm : ⅛", ¼" PT, NPT and PF
75 mm : ¼", ⅜" PT, NPT and PF
100 mm : ¼", ⅜", ½" PT, NPT and PF
One piece type connection (50 and 63 mm)
Two piece type connection (75 and 100 mm) |
