(주)와이즈

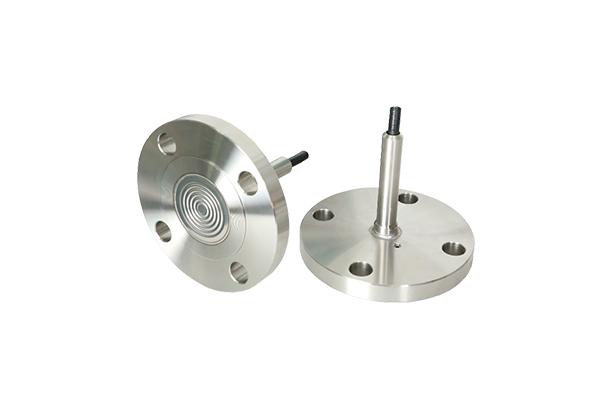

Diaphragm seal for Pressure Instrument

모델명

시리즈

일반압력계•스위치•기록계

구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.

02-300-2300

제품 상세 설명

Service intended

P790 series diaphragm seal are suitable for conditions where the process medium can cause corrosion to the instrument connection and the pressure sensing element, which the process medium contains suspended solid particles are viscous and be clossed. It is also suitable for where the process medium can freeze or solidify the internal parts of the instrument and where the medium requires flushing from the system to prevent contamination.

Design	Instrument welded diaphragm with threaded process connection, require hydraulic fluid to transmitter pressure to instrument.
Filling liquid	Silicone oil
Working temperature	Ambient : -20 ~ 65 °C Fluid : Refer to filling liquid reference table
Diaphragm material	Diaphragms are available in many corrosion resistant materials. Compatibility of selected material and process fluid should be determined by the user
Temperature effect	Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.5 % per 10 ℃ of full scale

Standard features

Upper flange (Gauge side)	Stainless steel (304, 316), Titanium, Monel
Diaphragm material	Stainless steel(316L) Hastelloy C-276, Titanium, Tantalum, Monel
Pressure connection	Thread type : PT, PF, and NPT others feasible Flange type : ANSI(ASME), JIS or other standard
Capillary	Capillary : Ø3.0 mm, 316L Flexible tube : Ø7.5 mm, 304, PVC coated
Note	PTFE lining is available up to 7 MPa (Coating)

자료 다운로드

Datasheet-WISE-General Pressure Gauge•Switch•Recorder-Diaphragm seal for Pressure Instrument-P791, P792
