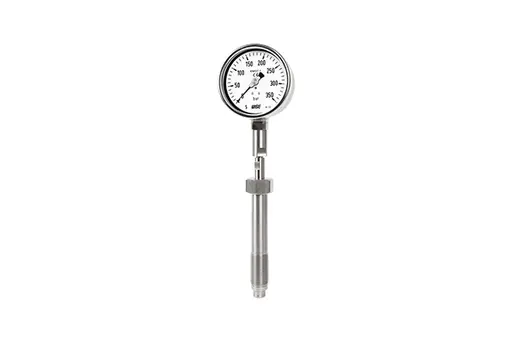

High Temperature Service Pressure Gauge

모델명

시리즈

일반압력계•스위치•기록계


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


02-300-2300

제품 상세 설명

Service intended

P740 series have diaphragm seal to be combined with a pressure gauge, and measure the melted plastics, fiber, and synthetic under high pressure. It is suitable to be used for the situation where corrosive, contaminated, hot and viscous pressure mediums are present during the chemical or food process.

Pressure range (MPa, bar) Refer to range table
Depending on diaphragm size and process conditions
Accuracy ±1.0 % of full scale
Filling liquid Silicone oil
Working temperature Ambient : -20 ~ 65 ℃
Fluid : Max. 300 ℃
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.5 % per 10 ℃ of full scale



Standard features

Process connection ¾" PF and 1" PF male screw
Body Stainless steel (316SS)
Diaphragm Stainless steel (316L SS)
Pocket 80, 150 and 300 mm
Certificates ATEX Ex II GD c IIC TX

© WISE Control Inc. All rights reserved. ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

자료 다운로드

Catalog-WISE-General Pressure Gauge•Switch•Recorder-High Temperature Service Pressure Gauge-P741, P742
