Service intended

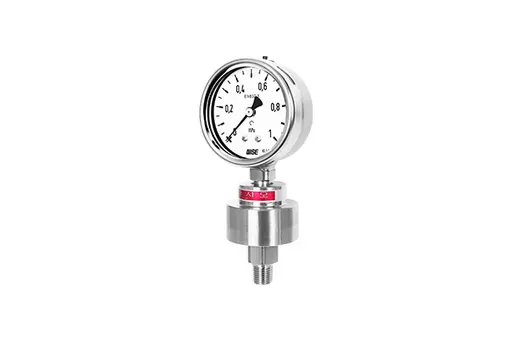

P701 series are designed for diaphragm seal to be combined with a pressure gauge. It is suitable for corrosive, contaminated, hot or viscous pressure media in chemical and food process.
| Design |
Internal diaphragm, upper and under flange welded no sealing and compact design |
| Accuracy |
P2522 (63 mm) and P2523 (80 mm) : ±1.6% of full scale
P2524 (100 mm) : ±1.0% of full scale |
| Scale range (MPa, kPa, bar) |
-0.1 ~ 0 to -0.1 ~ 2.4 MPa
0 ~ 0.1 to 0 ~ 7 MPa |
| Filling liquid |
Silicone oil |
| Working pressure |
Steady : 75 % of full scale (63 and 80 mm)
100 % of full scale (100 mm)
Over range protection : 130 % of full scale |
| Working temperature |
Ambient : -20 ~ 65 °C
Fluid : Max. 100 °C |
| Degree of protection |
EN60529/IEC529/IP65 |
| Temperature effect |
Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.5 % per 10 ℃ of full scale |
Standard features
| Pressure connection (Gauge side) |
Stainless steel (316SS) |
| Diaphragm |
316L SS, Hastelloy-C, Tantalum, Monel |
| Diaphragm outer diameter |
40 or 48 mm |
| Under flange (Process side) |
316SS, 316L SS, Monel, Hastelloy-C |
| Process connection |
¼", ⅜", ½" PT, NPT and PF
¼" PT and NPT (F) |
