Service intended

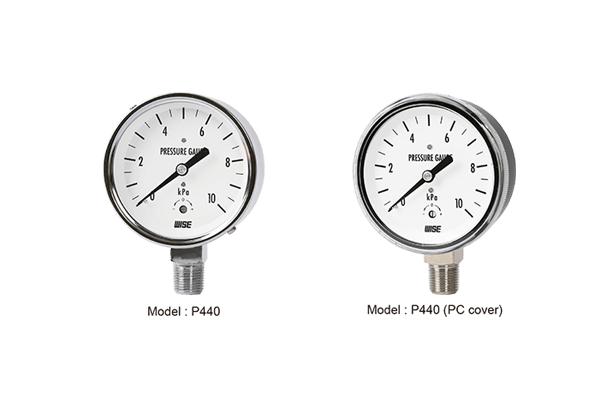

P440 series are designed to measure low, vacuum or compound pressure. These models have beryllium copper element and nickel plated steel case.
| Nominal diameter |
63, 75 and 100 mm |
| Accuracy |
±1.5 % of full scale |
| Scale range (kPa, mbar) |
-50 ~ 0 to -5 ~ 0 kPa
-15 ~ 15 to -2.5 ~ 2.5 kPa
0 ~ 5 to 0 ~ 50 kPa |
| Working pressure |
Steady : 75 % of full scale
Over range protection : 130% of full scale |
| Working temperature |
Ambient : -20 ~ 60 °C
Fluid : Max. 60 °C |
| Temperature effect |
Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.6 % per 10 ℃ of full scale |
Standard features
| Pressure connection |
Nickel plated brass
316SS, only available with 63 mm "F" type |
| Element |
Beryllium copper |
| Case |
Nickel plated steel
Stainless steel (304SS), only available with 63 mm "F" and "J" type |
| Cover |
Nickel plated steel
Stainless steel (304SS), only available with 63 mm "F" and "J" type |
| Window |
Glass Polycarbonate |
| Movement |
Brass |
| Dial |
White aluminium with black graduations |
| Pointer |
Black painted aluminium alloy |
| Process connection |
63 mm : ⅛", ¼" PT, NPT and PF
75 mm : ¼", ⅜" PT, NPT and PF
100 mm : ⅜", ½" PT, NPT and PF |
