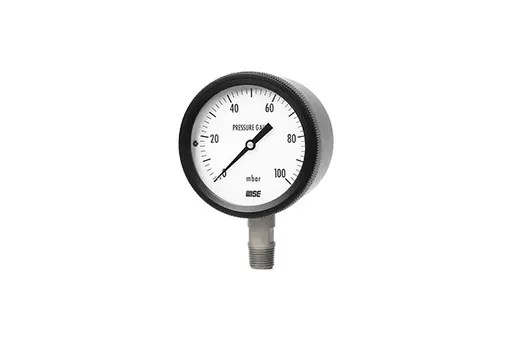

Low Pressure Gauge With Aluminium Case

모델명

시리즈

일반압력계•스위치•기록계

구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.

02-300-2300

제품 상세 설명

Service intended

P430 series are designed to measure low, vacuum or compound pressure. These models have a stainless steel 316L measuring element which consists of two formed diaphragms and diaphragms are welded together.

Nominal diameter 100 and 150 mm
Accuracy ±1.0 % of full scale
±1.5 % of full scale
Scale range (kPa, mbar) -35 ~ 0 to -1 ~ 0 kPa
-15 ~ 15 to -0.5 ~ 0.5 kPa
0 ~1 to 0 ~ 35 kPa
Working pressure Steady : 75 % of full scale
Over range protection : 130 % of full scale
Working temperature Ambient : -20 ~ 65 °C
Fluid : Max. 100 °C
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale



Standard features

Pressure connection Stainless steel (316SS)
Element Stainless steel (316L SS)
Pressure camber : Up to 35 kPa
Case Black finished aluminium
Cover Black finished aluminium
Window Safety glass
Movement Brass
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Process connection ⅜", ½" PT, NPT and PF

© WISE Control Inc. All rights reserved. ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

자료 다운로드

Datasheet-WISE-General Pressure Gauge•Switch•Recorder-Low Pressure Gauge With Aluminium Case-P430 series

Manual-WISE-General Pressure Gauge•Switch•Recorder-Low Pressure Gauge With Aluminium Case-P430 series
