Service intended

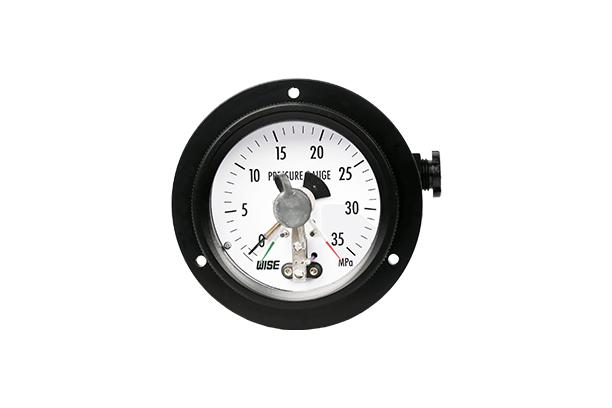

P530 series are designed for a local reading of measured pressure and equipped with the inductive contact block which allows all the combinations of contacts to be used. The contact block is mounted on the dial. The window is fitted with a knob for external adjustment of the setpoints.
| Nominal diameter |
100 and 150 mm |
| Accuracy |
±1.5 % of full scale |
| Scale range (MPa, kPa, bar) |
-0.1 ~ 0 to -0.1 ~ 2 MPa
0 ~ 0.1 to 0 ~ 100 MPa |
| Working pressure |
Steady : 75 % of full scale
Over range protection : 130 % of full scale |
| Working temperature |
Ambient : -40 ~ 65 °C
Fluid : Max. 100 °C |
| Temperature effect |
Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale |
Standard features
| Pressure connection |
Stainless steel (316SS) |
| Element |
C type bourdon tube Stainless steel (316SS) |
| Case |
Black finished aluminium |
| Cover |
Black finished aluminium Screwed |
| Window |
Acrylic resin
Safety glass (P539) |
| Movement |
Stainless steel |
| Dial |
White aluminium with black graduations |
| Pointer |
BsT3 alloy, black painted pointer with golden plated |
| Contacts |
Contact rating : AC 110 V, 0.5 A/AC 220 V 0.25 A
DC 110 V, 0.3 A/DC 220 V 0.15 A
Dielectric strength : AC 1,000 V/min
Insulation resistance : More than 100 MΩ at DC 500 V |
| Process connection |
⅜", ½" PT, NPT and PF |
| Certificates |
Pressure equipment directive (2014/68/EU) Annex III Module H |
