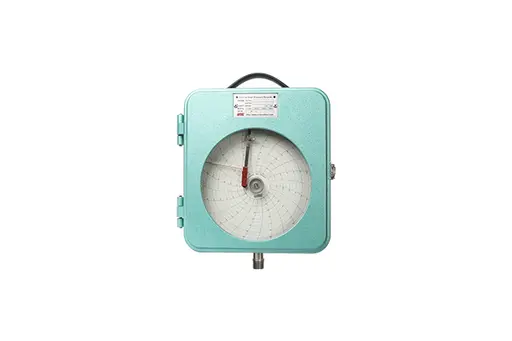

Chart recorder

모델명

시리즈

일반압력계•스위치•기록계

구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.

02-300-2300

제품 상세 설명

Service intended

P930 series pressure recorder provides a single or dual pen 200 mm circular chart recorder for measurement. It is suitable for hazardous environment such as gas or chemical process lines.

Nominal diameter 246 (W) X 271 mm (H)
Accuracy ±2.0 % of full scale
Scale range (MPa, kPa, bar) Pressure : 0 ~ 5 kPa to 0 ~ 100 MPa
Working pressure Steady pressure : 75 % of full scale
Over range protection : 130 % of full scale
Working temperature Ambient : -40 ~ 65 ℃
Fluid : Max. 200 ℃



Standard features

Pressure connection Stainless steel (316SS)
Element Bourdon tube : Stainless steel (316SS)
Bellows : Brass
Case and cover ALDC 12.1
Hinged door
Window Acrylic resin
Movement Brass
Chart drive 1. Spring wound type : 24, 168 (7 day) hours rotation
2. Battery type : 30 min, 96 min, 1, 2, 4, 6, 8, 12 hours and 1, 2, 7, 8, 14, 16, 31, 32 days selectable for portable type
Chart paper 200 mm circular
Mounting Surface mounting and portable type
Process connection ⅜", ½" PT, NPT and PF

© WISE Control Inc. All rights reserved. ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
