Service intended

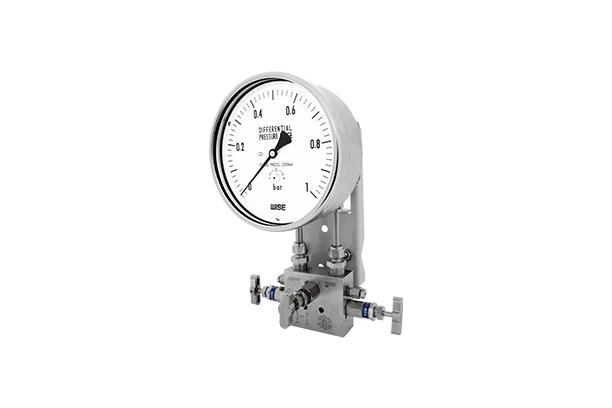

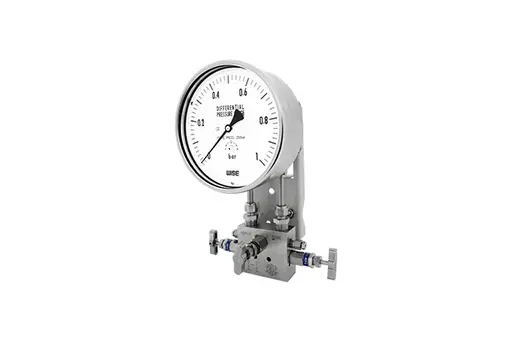

P620 and P630 series are designed to measure differential pressure from 1 kPa to 1.5 MPa at static pressure up to 5 and 25 MPa. A set of stainless steel bellows mounted on a force balance allows direct reading of the actual differential pressure.
| Nominal diameter |
100 and 160 mm |
| Accuracy |
±1.0 % of full scale
±1.6 % of full scale |
| Scale range (MPa, kPa, bar) |
0 ~ 1 kPa to 0 ~ 50 kPa
0 ~ 0.1 MPa to 0 ~ 1.5 MPa |
| Static pressure |
P620 : 5 MPa
P630 : 25 MPa |
| Working temperature |
Ambient : -20 ~ 65 °C
Fluid : Max. 100 °C |
| Degree of protection |
EN60529/IEC529/IP67 |
| Temperature effect |
Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.5 % per 10 ℃ of full scale |
Standard features
| Pressure connection |
Stainless steel (316SS) |
| Element |
Bellows
Stainless steel (316L SS) |
| Case |
Stainless steel (304SS) |
| Cover |
Stainless steel (304SS) Bayonet type |
| Window |
Safety glass |
| Dial |
White aluminium with black graduations |
| Pointer |
Black painted aluminium alloy |
| Process connection |
¼" NPT(F)
½" NPT(F) at 3-way and 5-way manifold valve |
| Standard accessories |
Mounting bracket for 2" pipe
mounting with silver gray finished steel |
| Certificates |
Pressure equipment directive (2014/68/EU) Annex III Module H |
| Option |
■ Remote seal
■ Mounting bracket with 316SS for 2" pipe mounting
■ 3-way manifold valve (316SS, Monel)
■ 5-way manifold valve (316SS, Monel) |
