Service intended

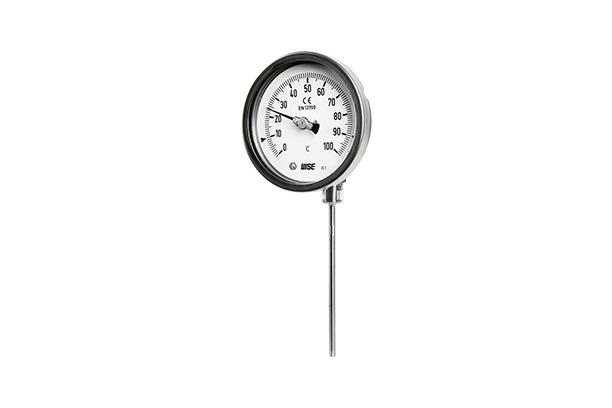

Bimetal thermometer is used for measuring temperature of gas or fluid. It is suitable for measurement, regulation and direct monitoring for the fluid. It meets the most stringent criteria on resistance to a corrosive atmosphere and exceptional climatic circumstances.
Nominal diameter | 75, 100, 125 and 150 mm |
Accuracy | ±2.0 % of full scale |
Temperature element | Coiled bimetal |
Working range | Maximum scale value |
Standard features
Location of stem | Center back with angle stem |
Case | 304SS |
Cover | 304SS |
Window | Glass |
Dial | White aluminium with black graduations |
Pointer | Black painted aluminium alloy |
Stem | 6.0, 6.4, 8.0 and 10.0 mm diameter 304SS, 316SS and 316L SS Max. Insertion length : 2,000 mm |
Zero adjustment | External |
Stem, process connection | ¼", ⅜", ½", ¾" PT, NPT and PF |
Option | ±1.0 % of full scale |
