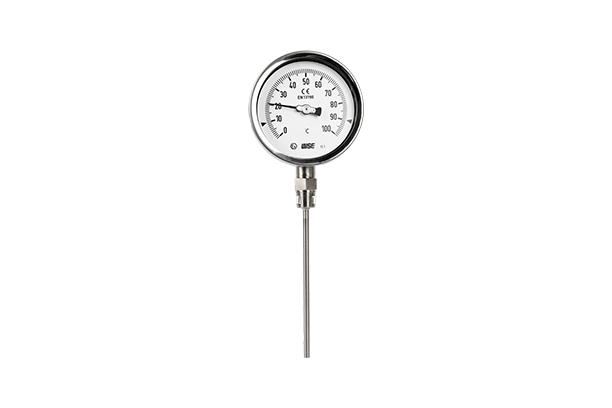

Process industry bimetal thermometer

모델명

시리즈

온도계•스위치•기록계

구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.

02-300-2300

제품 상세 설명

Service intended

Bimetal thermometer is used for measuring temperature of gas or fluid. It is suitable for measurement, regulation, and direct monitoring for the fluid. It meets the most stringent criteria on resistance to a corrosive atmosphere and exceptional climatic circumstances.

Nominal diameter 75 and 100 mm
Accuracy ±2.0 % of full scale
Temperature element Coiled bimetal
Working range Maximum scale value
Degree of protection EN60529/IEC529/IP65 (100 mm)



Standard features

Location of stem Bottom connection, direct
Case 304SS
Cover 304SS
Window Glass
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Stem 6.0, 6.4, 8.0 and 10.0 mm diameter
304SS, 316SS and 316L SS
Max. Insertion length : 2,000 mm
Zero adjustment Internal
Stem, process connection ¼", ⅜", ½", ¾" PT, NPT and PF
Option ±1.0 % of full scale
