Service intended

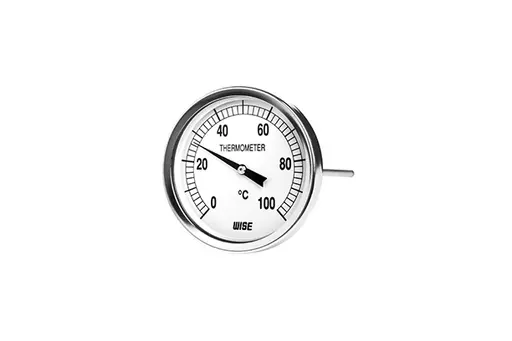

Bimetal thermometer is used for measuring temperature of gas or fluid. It is suitable for measurement, regulation and direct monitoring for the fluid. It meets the most stringent criteria on resistance to a corrosive atmosphere and exceptional climatic circumstances.
Nominal diameter | 75 and 100 mm |
Accuracy | ±2.0 % of full scale |
Temperature element | Coiled bimetal |
Working range | Maximum scale value |
Standard features
Location of stem | Center back connection, direct |
Case | Nickel plated steel |
Cover | Nickel plated steel |
Window | Glass |
Dial | White aluminium with black graduations |
Pointer | Black painted aluminium alloy |
Stem | 6.4 mm diameter 304SS, 316SS and 316L SS Max. Insertion length : 400 mm |
Stem, process connection | ¼", ⅜", ½" PT, NPT and PF |
