Service intended

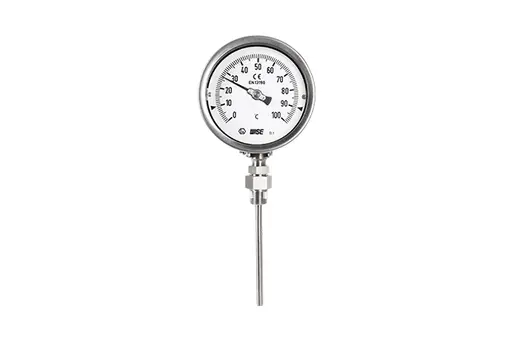

This thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries. It operates in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.
Nominal diameter | 100 and 150 mm |
Accuracy | ±2.0 % of full scale |
Measuring system (SAMA class ⅢB) | Organic gas : 0 ~ 200 °C Inert gas : -200 ~ 700 °C |
Working range | Maximum scale value |
Standard features
Location of stem | Lower back with adjustable stem |
Case | 304SS, Adjustable on stem 90° |
Cover | 304SS |
Window | Tempered safety glass |
Dial | White aluminium with black graduations |
Pointer | Black painted aluminium alloy |
Stem | 8.0, 10.0 and 12.0 mm 316SS and 316L SS |
Zero adjustment | Internal |
Stem, process connection | ⅜", ½", ¾" PT, NPT and PF |
Stem connection type | Movable thread |
Option | ±1.0 % of full scale |
