Service intended

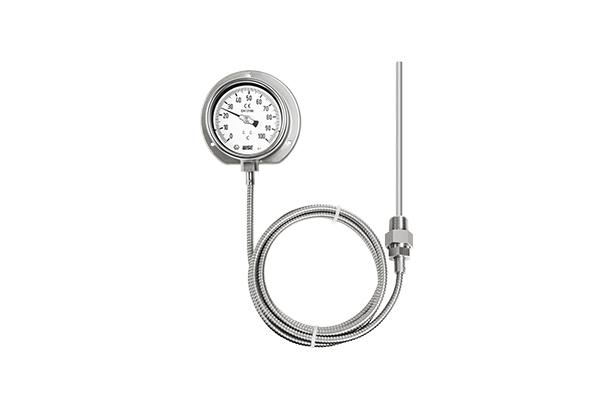

This thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries. It operates in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.
Nominal diameter |
100 and 160 mm |
Accuracy |
±2.0 % of full scale |
Measuring system (SAMA class ⅢB) |
Organic gas : 0 ~ 200 °C Inert gas : -200 ~ 700 °C |
Working range |
Maximum scale value |
Degree of protection |
EN60529/IEC529/IP67 (100 mm) |
Standard features
Location of stem and mounting |
Bottom connection, surface, case mounting Lower back connection, flush, case center mounting |
Case |
304SS |
Cover |
304SS Bayonet type |
Window |
Tempered safety glass |
Capillary |
Capillary : 1.6/0.2 mm, 316SS Armored : 7.5/5.5 mm, 304SS |
Dial |
White aluminium with black graduations |
Pointer |
Black painted aluminium alloy |
Stem |
8.0, 10.0 and 12.0 mm 316SS and 316L SS |
Stem, process connection |
⅜", ½", ¾" PT, NPT and PF |
Option |
±1.0 % of full scale Window : Safety glass Special range : 0 ~ 700 ℃ |
