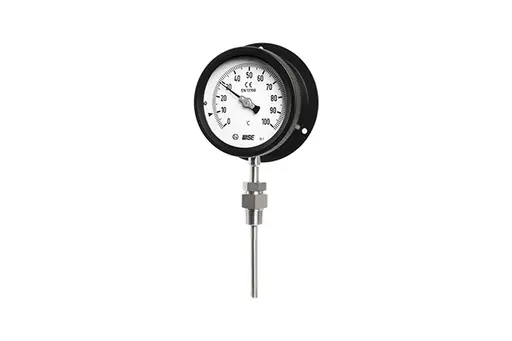

Direct reading thermometer with aluminium case

모델명

시리즈

온도계•스위치•기록계

구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.

02-300-2300

제품 상세 설명

Service intended

This thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries. It operates in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.

Nominal diameter 100 and 150 mm
Accuracy ±2.0 % of full scale
Measuring system (SAMA class ⅢB) Organic gas : 0 ~ 200 °C
Inert gas : -200 ~ 700 °C
Working range Maximum scale value



Standard features

Location of stem Bottom connection, direct
Bottom connection, surface, case mounting Lower back connection, direct
Case Black finished aluminium
Cover Black finished aluminium
Window Tempered safety glass
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Stem 8.0, 10.0 and 12.0 mm
Case 316SS and 316L SS
Zero adjustment Internal
Stem, process connection ⅜", ½", ¾" PT, NPT and PF
Option ±1.0 % of full scale
