Service intended

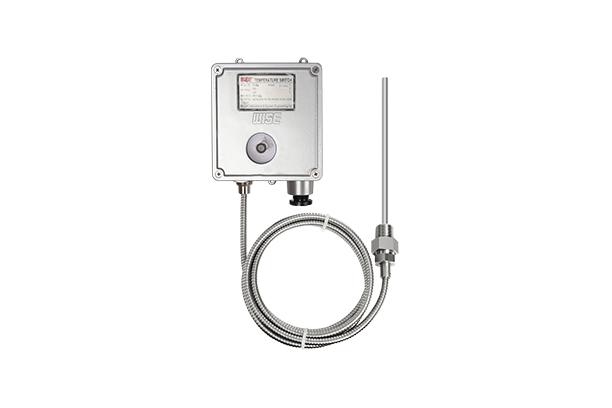

This temperature switch is installed with a micro contact, and it is suitable for measuring the temperature of corrosive fluid. Dead band is fixed.
| Dimension |
Refer to type of mounting |
| Repeatability |
±1.0 % of adjustable range |
| Measuring system (SAMA class ⅢB) |
Organic gas : 0 ~ 200 °C
Inert gas : -200 ~ 700 °C |
| Dead band |
One SPDT : 5 ~ 6 % of full scale
Two SPDT : 12 % of full scale |
| Working range |
Maximum scale value |
Standard features
| Location of stem and mounting |
Bottom connection, surface, case mounting |
| Case |
Silver gray finished aluminium |
| Cover |
Silver gray finished aluminium |
| Switch type |
Micro switch snap action |
| Switch form |
One SPDT or Two SPDT DPDT |
| Capillary |
Capillary : 1.6/0.2 mm, 316SS
Armored tube : 7.5/5.5 mm, 304SS |
| Contact rating |
■ AC 125 V/250 V, 15 A and DC 30 V, 2 A
DC 125 V, 0.5 A for resistance load
■ AC 125 V/250 V, 15 A and DC 30 V, 1 A
DC 125 V, 0.05 A for inductive load |
| Conduit connection |
½" or ¾" PF |
| Stem |
8.0, 10.0 and 12.0 mm
316SS and 316L SS |
| Stem, process connection |
⅜", ½", ¾" PT, NPT and PF |
