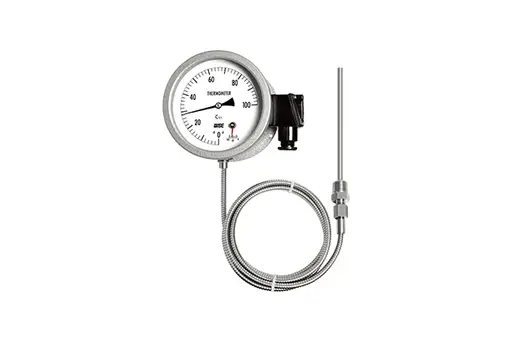

T931 (Case compensation system SAMA class ⅢB) T932 (Full compensation system SAMA class ⅢA)
Service intended
This temperature switch is installed with a micro contact and it is suitable for measuring the temperature of corrosive fluid. Dead band is fixed.
Nominal diameter |
150 mm |
Repeatability |
±1.0 % of adjustable range |
Accuracy |
±2.0 % of full scale |
Measuring system |
Organic gas : 0 ~ 200 °C (Only T932) Inert gas : -200 ~ 700 °C |
Working range |
Maximum scale value |
Standard features
Location of stem and mounting |
Bottom connection, surface, case mounting |
Case |
Silver gray finished aluminium |
Cover |
Silver gray finished aluminium |
Window |
Instrument glass |
Switch type |
Micro switch snap action |
Switch form |
One SPDT for single setpoint Two SPDT for dual setpoint |
Capillary |
Capillary : 1.6/0.2 mm, 316SS Armored tube : 7.5/5.5 mm, 304SS |
Contacts |
AC 125 V / 250 V, 7 A AC 125 V / 250 V, 7 A for resistance load AC 125 V / 250 V, 7 A for inductive load |
Conduit connection |
½", ¾" PF |
Stem |
8.0, 10.0 and 12.0 mm 316SS and 316L SS |
Stem, process connection |
⅜", ½", ¾" PT, NPT and PF |
Option |
Special accuracy : ±1.0 % of full scale |
