(주)와이즈

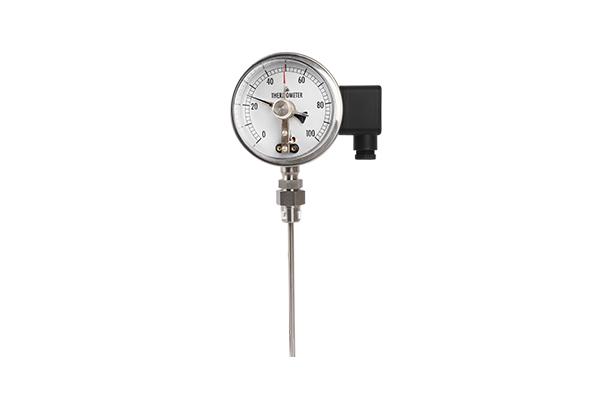

Bimetal thermometer with electrical contact

모델명

시리즈

온도계•스위치•기록계

구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.

02-300-2300

제품 상세 설명

T751(H), T752(H/L), T753(L), T754(H/HH)

Service intended

Contact type temperature gauge is installed with electric contact actuated by pointer. It provides the function which electrical circuit can be opened or closed by manual setpoint. It is applicable where signal is required (Audible or visual alarm) for control of resistance or any other application with auxiliary relay and contact.

Nominal diameter	100 mm
Accuracy	±2.0 % of full scale
Temperature element	Coiled bimetal
Working range	Maximum scale value
Degree of protection	EN60529/IEC529/IP65

Standard features

Location of stem	Bottom connection, direct Center back connection, direct
Case	304SS
Cover	304SS
Window	Acrylic
Dial	White aluminium with black graduations
Contacts	Maximum voltage : 250 V AC Contact rating : AC 220 V, 0.25 A DC 100 V, 0.5 A With max. no of contact : 2 sets per gauge
Pointer	Black painted aluminium alloy
Stem	6.0, 6.4, 8.0 and 10.0 mm 304SS, 316SS and 316L SS
Stem, process connection	¼", ⅜", ½", ¾" PT, NPT and PF
Option	±1.0 % of full scale
