(주)와이즈

Extension lead wire thermocouple and resistance temperature detector

모델명

시리즈

온도센서•히터•트랜스미터

구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.

02-300-2300

제품 상세 설명

Service intended

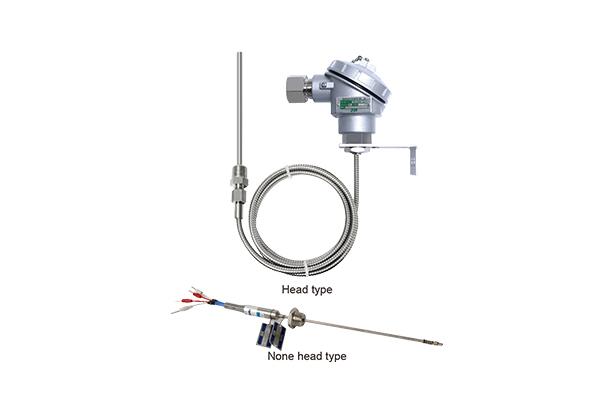

This type of detector does not use terminal head, rather it directly connects to an indicator or a transmitter. It is very useful where the distance between measuring parts and the location of its head is too far. The measuring parts and its head can be connected by using an extension wire. Extension wire can be selected according to its installation site condition, its protection shape of armored tube, and its wire covering material.

Standard features

Element	Thermocouple : K, E, J, T, N, R, S, B RTD : Pt 100 Ω at 0℃ (Ceramic and Mica type)
Tolerances on temperature reading	■ Thermocouple Class 1, Class 2 (DIN/IEC584-2, BS/EN60584-2, JIS C1602) Special, Standard (ASTM E230 E988 ISA-MC96.1) ■ R.T.D. Class A : ± (0.15 + 0.002 l t l) Class B : ± (0.3 + 0.005 l t l)
Sheath outer diameter	■ Thermocouple 1.0, 1.6, 2.3, 3.2, 4.8, 6.4, 8.0, 9.5 and 12.7 mm * Double element is not available for 1.0 and 1.6 mm sheath outer diameter ■ R.T.D. 3.2, 4.8, 6.4 and 8.0 mm
Sensing element structure	Protection tube or sheathed
Protecting tube outer diameter	6.4, 8.0, 10.0, 12.0 and 15.0 mm
Degree of protection	EN60529/IEC529/IP65
